Model:GT-F595

Product details:
 Adobe Reader Download.

Products Information

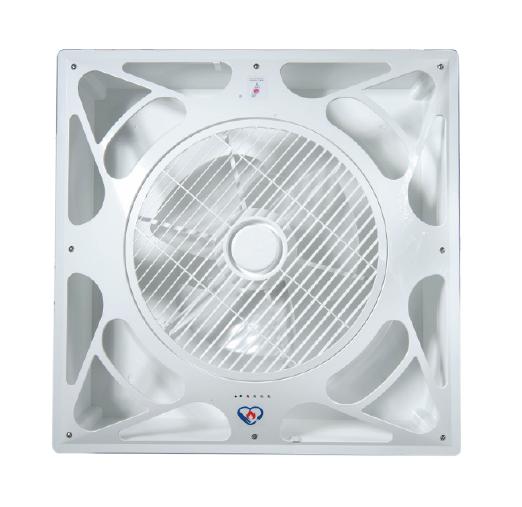

GT-F595 Energy-Saving Fans

Products Features

→LIGHT STEEL ENERGY-SAVING FANS HAVE 3 SPEEDS: STRONG, MEDIUM AND
   WEAK OSCILLATING MIDDLE FANS IS TURNTABLE.
→DIAMETER IS 14".
→BACK IS SEALED TO ISOLATE FROM CEILING. WILL NOT ABSORB FALLING DUST.
→110V/220V AVAILABLE. LESS THAN 52W DURING MOTOR FUNCTIONING. 30~40%
   POWER SAVED THAN NORMAL E-FANS.
→INFRARED WIRELESS REMOTE CONTROL IS AVAILABLE
→WE USE DOUBLE BALL BEARING MOTORS.
→ABS ANTI-STATIC MATERIAL FOR SHELL.
→CAN BE CONNECTED TO AIR CONDITIONING DUCTINGS.
→EASILY INSTALLED WITH THE EXTRA PANEL.
→OSCILLATING BLADE COVER TO INCREASE COVERAGE. THE HIGHER THE FAN, THE
   MORE COVERAGE.

Parts name Energy-Saving Fan
Voltage 110V/60Hz & 220V/60Hz
Dimension Specifications Metric System:595×595×200mm
British Inch:2×2×0.66( feet )
Outlet Dia. (inch) 16"
Fan Blade OD (inch) 14"
Applicable space 10-13 m²
Energy Efficiency (m³ / mim. W) 48W
Weight 4.5KG
Product Remarks:
