Oil Separator

Model:S Series

Product details:
 Adobe Reader Download.

Products Information

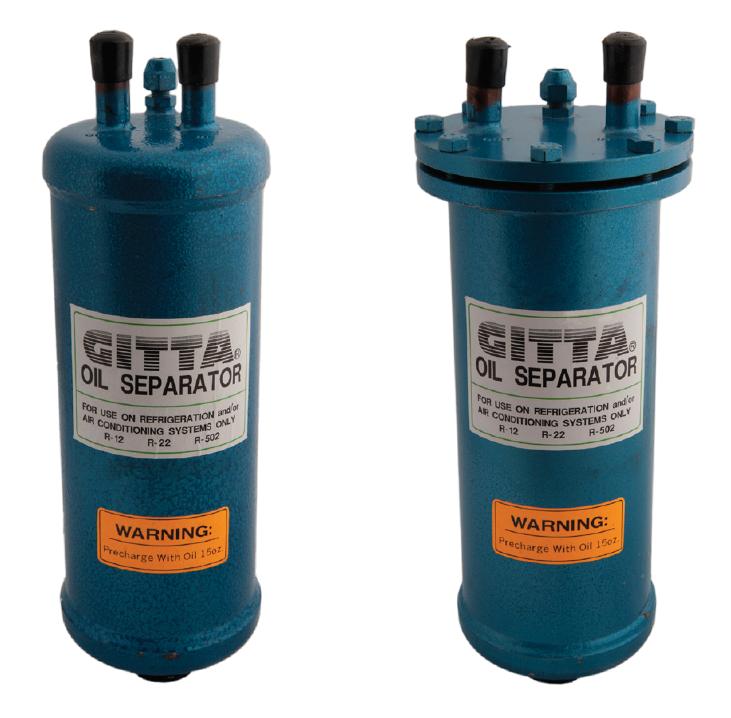

S Series Oil Separator



Products Features
SEPARATOR’S FUNCTION IS TO HELP REFRIGERATION AND AIR CONDITIONING
   SYSTEMS OPERATE MORE EFFICIENTLY AND SAVE ENERGY.
IN ANY REFRIGERATION SYSTEM, REFRIGERANT AND OIL ARE ALWAYS PRESENT.
CERTAIN AMOUNTS OF OIL WILL ALWAYS LEAVE THE COMPRESSOR CRANKCASE
   WITH REFRIGERANT GAS.
THE OIL SEPARATOR SEPARATES THE OIL FROM THE REFRIGERANT AND
   RETURNS IT TO THE COMPRESSOR CRANK-CASE BEFORE IT CAN ENTER OTHER
   COMPONENTS OF THE SYSTEM.
THE LESS OIL IN CIRCULATION IN A REFRIGERATION SYSTEM, THE MORE
   REFRIGERANT AVAILABLE FOR COOLING.
THIS INCREASES THE EFFICIENCY OF A SYSTEM BY REDUCING RUNNING TIME
   AND LOWERING OPERATING COST.
SAFE WORKING PRESSURE-450PSI.
Model No.
DIA. Inches Dimensions-inches
Size Conn Length DIA. Inches
S-5200 5201S 1/2 ODS 7-1/2 4
5201

1/2 ODS

10-1/4
5202 5/8 ODS 14-1/4
5203 7/8 ODS 16-3/4
5204 1-1/8 ODS 18
5205 1-3/8 ODS 19
S-5300 5302 1/2 ODS 10-1/4 4
5303 5/8 ODS 14-1/4
5304 7/8 ODS 16-3/4
5305 1-1/8 ODS 18
5306 1-3/8 ODS 19
5307 1-5/8 ODS 19
S-6200 6202 1-1/8 ODS 14-1/2 6
6203 1-3/8 ODS 16
6204 1-5/8 ODS 17-1/4
6205 2-1/8 ODS 19
S-6300 6302 1-1/8 ODS 14-1/2 6
6303 1-3/8 ODS 16
6304 1-5/8 ODS 17-1/4
6305 2-1/8 ODS 19
Product Remarks:
