Hvac\Expansion Valve

Expansion Valve

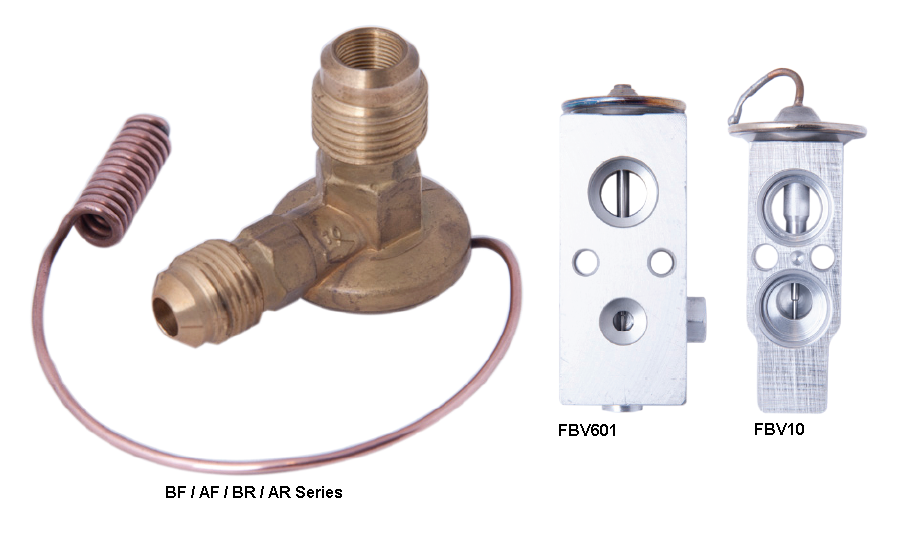

Model：BF/AF/BR/AR Series

Product details：

Adobe Reader Download.

*Products Information*
BF Series Expansion Valve AF Series Expansion Valve BR Series Expansion Valve AR Series Expansion Valve

*Products* Features
Model No.	Capacity (U.S. Ton)	Connections (Inlet x Outlet)	Equalizer Terminal	Heat Resistance	Working Proof	Pressure Proof	Weight
BF-3040	1.0 Ton	Flare × Flare 9.52×12.7(mm) 3/8×1/2(inch)	Internal	G-charge	High Pressure Side 30Kg/cm²G	40Kg/cm²G	140g
AF-3040	1.5 Ton	Flare × Flare 9.52×12.7(mm) 3/8×1/2(inch)
BR-2540	1.0 Ton	Oring × Oring In 9/16~18UNF Out 3/4~16UNF
AR-2540	1.5 Ton	Oring × Oring In 9/16~18UNF Out 3/4~16UNF
BR-3040	1.0 Ton	Oring × Oring In 5/8~18UNF Out 3/4~16UNF
AR-3040	1.5 Ton	Oring × Oring In 5/8~18UNF Out 3/4~16UNF
AR-1620	1.5 Ton	Oring × Oring In M16×1.5 Out M20×1.5
AR-1622	1.5 Ton	In M16 × 1.5 Out M22×1.5

Dimension

*Products Information*
FBV601 Expansion Valve
*Products* Features
→For R-12 use

*Products Information*
FBV10 Expansion Valve
*Products* Features
→For R134A use

Product Remarks：
