Model:GTHK Series

Product details:
 Adobe Reader Download.

Products Information

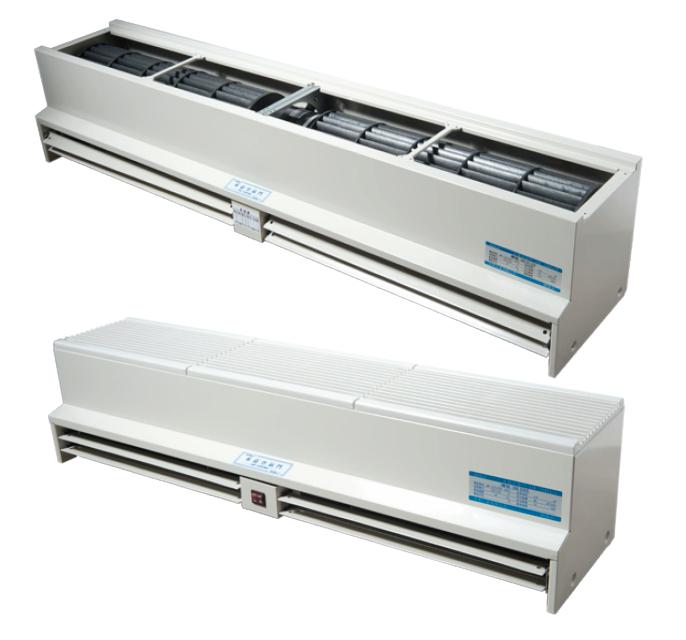

GTHK Series Air Curtain



Products Features

→SAVES ENERGY WHEN THE AIR-CONDITIONER IS IN USE.
→IT KEEPS OUT INSECTS, SUCH AS MOSQUITOES.
→IT KEEPS OUT SMOKE, FOUL SMELLS AND DUSTS.
→IT IS CONVENIENT TO USE AND IS ABLE TO RE-PLACE THE FUNCTION OF THE
   DOOR.

PLACES WHICH ARE RECOMMENDED TO INSTALL THE AIR CURTAIN :
→DEPARTMENT STORE, COSTUME AND ACCESSORIES SHOP, LIBRARIES, ART
   GALLERIES AND FURNITURE SHOPS.
→RAILWAY STATIONS, BUS STATIONS, MASS TRANSIT RAILWAY STATIONS AND
   HOTELS.
→CAFETERIAS, COFFEE SHOPS, BAKERIES AND RESTAURANTS.
→ELECTRONIC PLANTS, PAINTING AND COVERING SHOPS, TEXTILE FACTORIES
   AND DUSTPROOF FACTORIES.
→REFRIGERATED WAREHOUSES, FOOD PROCESSING PLANTS AND KITCHENS.

TRADITIONAL TYPE

Models

Fan-blade Diameter (mm) Length (mm) Electricity (Hz.V) Spec. Input (W1) Effective Blocking Height (mm) Wind Velocity (m/sec) A Wind Amount (m³/min) Weight (kg)
GTHK-070 110 Ф 700 110V / 220V 60Hz 110W / 140W 3.5M 10.5 23 13
GTHK-0701 110 Ф 700 110V 50Hz / 60Hz 110W / 140W 3.5M 10.5 23 13
GTHK-0702 110 Ф 700 220V / 240V 50Hz / 60Hz 110W / 130W 3.5M 10.5 23 13
GTHK-090 110 Ф 900 110V / 220V 60Hz 130W / 145W 3.5M 10 28 16
GTHK-0901 110 Ф 900 110V / 220V 60Hz 110W / 140W 3.5M 10 28 16
GTHK-0902 110 Ф 900 220V / 240V 50Hz / 60Hz 110W / 130W 3.5M 10 28 16
GTHK-0120 110 Ф 1200 110V / 220V 60Hz 150W / 165W 3.5M 9.6 36 19
GTHK-01201 110 Ф 1200 110V 50Hz / 60Hz 120W / 155W 3.5M 9.6 36 19
GTHK-01202 110 Ф 1200 220V / 240V 50Hz / 60Hz 140W / 140W 3.5M 9.6 36 19

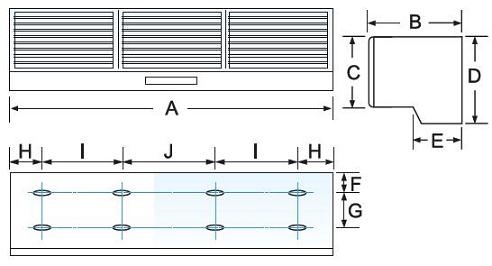

Dimensions


INDUSTRIAL TYPE

Models

Fan-blade Diameter (mm) Length (mm) Electricity (Hz.V) Spec. Input (W1) Effective Blocking Height (mm) Wind Velocity (m/sec) A Wind Amount (m³/min) Weight (kg)
GTHK-15090 150 Ф 900 110V / 220V 60Hz 310W / 330W 4.0M 13 50 21
GTHK-150901 150 Ф 900 110V 50Hz / 60Hz 240W / 300W 4.0M 13 50 21
GTHK-150902 150 Ф 900 220V / 240V 50Hz / 60Hz 260W / 310W 4.0M 13 50 21
GTHK-150903 150 Ф 900 220V / 240V 50Hz / 60Hz 365W / 365W 4.0M 13 53 21
GTHK-15120 150 Ф 1200 110V / 220V 60Hz 320W / 341W 4.0M 13 63 25
GTHK-151201 150 Ф 1200 110V 50Hz / 60Hz 250W / 310W 4.0M 13 63 25
GTHK-151202 150 Ф 1200 220V / 240V 50Hz / 60Hz 270W / 320W 4.0M 13 63 25
GTHK-151203 150 Ф 1200 220V / 380V 380W / 380W 4.0M 13 70 28.5
Products Information

INSTALLATION ILLUSTRATION CEILING INSTALLATION :
INSTALL THE BASE ONTO THE L-BRACKET.
AFFIX THE L-BRACKET ONTO A STURDY CEILING BASE.
INSTALL THE AIR CURTAIN AS IN THE PROCEDURES FOR DOOR INSTALLATION.

DOOR INSTALLATION :
FIX BASE PLATE FIRMLY ON THE WALL ABOVE THE DOOR.
INSTALL THE BODY OF THE CURTAIN SECURELY ONTO THE BASE PLATE.
TIGHTEN THE VIBRATION-PROOF SCREW AND CONNECT THE CURTAIN TO THE
   POWER SUPPLY TO TEST OPERATION.

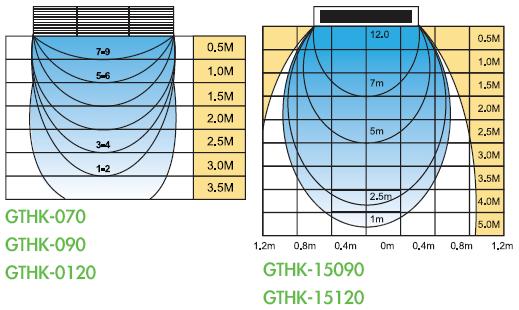

WIND SPEED DISTRIBUTION

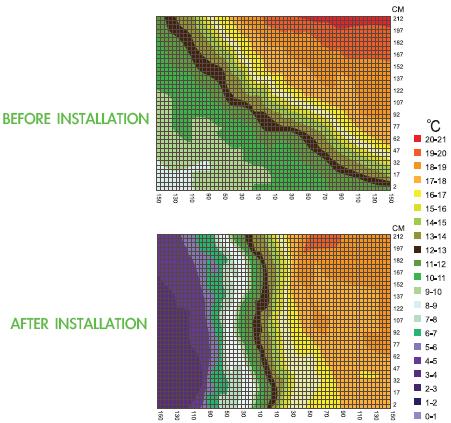

HEATING EXCHANGE CHART
