Hvac\Thermostat

Thermostat

Model:T Series

Product details:
 Adobe Reader Download.

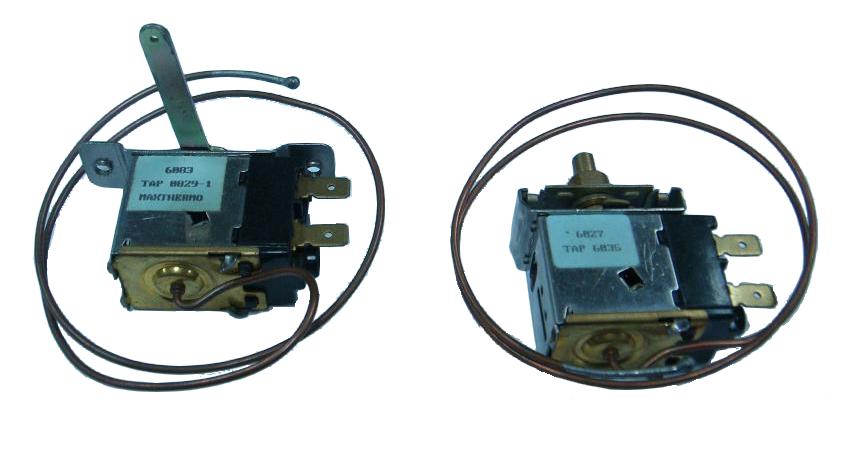

Products Information

TCM Series Thermostat
TCP Series Thermostat
TSP Series Thermostat
TSM Series Thermostat



Products Features
→Thermostat for Air Conditioner
Model No.
Operating Temp. (°C) Forced Off Diff Contact Style
Cold Normal Ware
On Off On Off On Off
TCM0304 1.0±1.5 -3.0±1.5 - - 18 15 With - S.P.S.T.
TCM0550 0.0±1.5 -5.0±1.5 - - 17 14 With S.P.S.T.
TCP0135 4.5 -1.0±1.5 - - 17.5 15 - S.P.S.T.
TCP0135A 4.5 -1.0±1.5 - - 17.5 15 - S.P.S.T.
TCP3550 4.5 -1.0±1.5 - - 17.5 15 - S.P.S.T.
TCP2240 6.2±1.5 2.2±1.5 - - 20.5 17.8 With S.P.S.T.
TSP0140 - - 5.0±1.0 1.0±1.0 - - - S.P.S.T.
TSP0540 - - 4.5±1.0 0.5±1.0 - - - S.P.S.T.
TSM0628 - - 2.2±1.0 -0.6±1.0 - - - S.P.S.T.

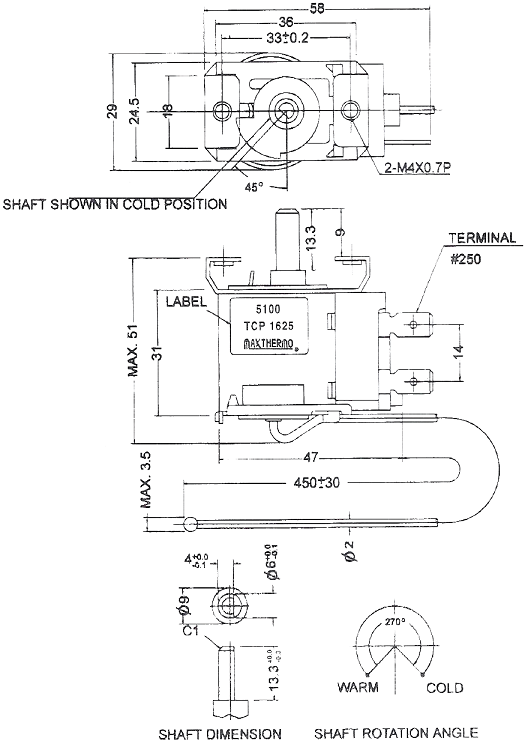

Dimensions (mm)


Products Information

TCP Series Thermostat
TWP Series Thermostat
TUP Series Thermostat



Products Information
→Thermostat for Air Conditioner, Chiller Unit
Model No.
Operating Temp. (°C) Forced Off Diff Contact Style
Cold Normal Ware
On Off On Off On Off
TCP1625 18.5 16.0±1.5 - - 33 31 - 2.5±1.0 S.P.S.T.
TCP1625B 18.5 16.0±1.5 - - 32 29.5 2.5±1.0 S.P.D.T.
TCP1630 19.4±1.5 1.0±1.5 - - 30 - 3.0 S.P.S.T.
TWP3030 19.4±1.5 1.0±1.5 - - 30 - 3.0 S.P.S.T.
TWP2828 18 - - - 30.0±2.5 27.7 3.5+0 S.P.D.T.
TWP2825A 18.5 15.3 - - 30 27.5±1.5 2.5±0.6 S.P.S.T.
TWP3023 - 16.5 - - 32.3 27.5±1.5 3.0±0 S.P.S.T.
TWP3028B 13.8 10 - - 32.6 30.0±2.5 2.3 +1.2 S.P.S.T.
-0.3
TUP3028 17.4 14.2 29.4 27.4 32.6 30.0±2.5 2.3 +1.2 S.P.S.T.
-0.3

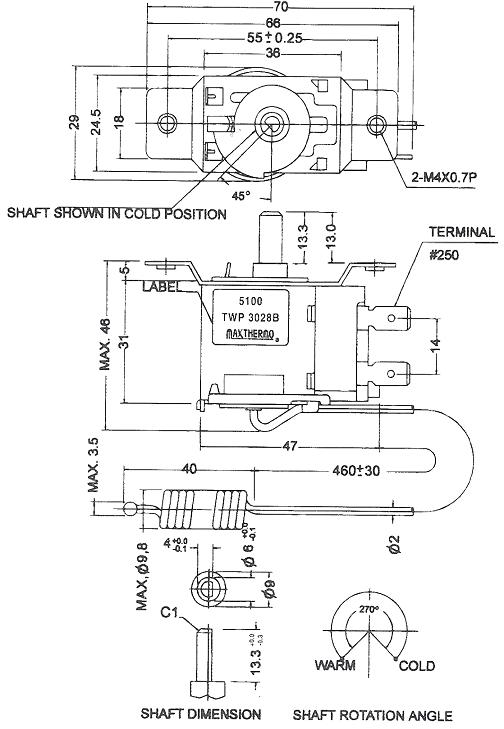

Dimensions (mm)


Products Information

TNP Series Thermostat
TSP Series Thermostat



Products Information
→Thermostat for Refrigerator, Freezer, Cooler
Model No.
Operating Temp. (°C) Forced Off Diff Contact Style
Cold Normal Ware
On Off On Off On Off
TNP1225 11.5 9 14.0±1.5 11.0±1.5 17 14.5 - - S.P.D.T.
TNP3645 36 31.5 40.5±1.5 36.0±1.5 40 40.5 S.P.D.T.
TSP0040A - - 4.0±1.0 0.0±1.0 - - S.P.S.T.
TSP0180 - - 9.0±1.0 1.0±1.0 - - S.P.D.T.
TSP0304 - - 7.0±1.0 3.5±1.5 - - S.P.S.T.
TSP1040B - - 14.0±1.0 10.0±1.0 - - S.P.S.T.
TSP1040-13 - - 14.0±1.0 10.0±1.0 - - S.P.S.T.
TSP3535 - - 7.0±1.0 3.5±1.5 - - S.P.S.T.
TSP3535-8 - - 7.0±1.0 3.5±1.0 - - S.P.S.T.

Products Information

TNM Series Thermostat
TSP Series Thermostat
TCM Series Thermostat
TCP Series Thermostat
TNP Series Thermostat
TWP Series Thermostat



Products Information
→Thermostat for Refrigerator, Freezer, Cooler
Model No.
Operating Temp. (°C) Forced Off Diff Contact Style
Cold Normal Ware
On Off On Off On Off
TNM0545 -13 -20 -0.5±1.5 -0.5±1.5 10.5 7.2 With - S.P.S.T.
TNM4226 -20 -26.5 -17.0±1.5 -23.0±0.5 -13.5 -19 - S.P.S.T.
TSP0040A 5.0±1.5 1.5±1.5 8.5 5.5 12.5 9.5 With S.P.S.T.
TCM1885 -9.5±1.5 -18±1.5 - - 10 5.5 With S.P.S.T.
TCM2625A -18±1.5 -24.5±1.5 - - -9.5 -14.5 With S.P.S.T.
TCP0130A -4.0±1.5 1.0±1.5 13 10 22 19 - S.P.S.T.
TNP0040 7.2 3.2 12.5±1.5 9.5±1.5 18.3 15.1 With S.P.S.T.
TNP0935A 7.2 3.2 12.5±1.5 9.5±1.5 18.3 15.1 With S.P.S.T.
TNP5026 4.5 -2.0 8.5±1.5 2.5±1.5 12.6 7.3 - S.P.S.T.
TSP0440A - - 8.5±1.5 4.0±1.0 - - - S.P.S.T.
TCP0040 4 0 - - 44 40 - S.P.D.T.
TWP1040 -26 -30 - - 14 10 - S.P.D.T.
Product Remarks:
