Replaceable Core Filter Drier

Model：CD Series

Product details：

Adobe Reader Download.

*Products Information*
CD Series Replaceable Core Filter Drier
*Products* Features
→THESE DEVICES OFFER THE FLEXIBILITY OF USING EITHER REPLACEABLE FILTER CORES AS PROTECTION AGAINST SOLID. →CONTAMINANTS, OR REPLACEABLE FILTER DRIER BLOCKS FOR PROTECTION AGAINST ACID, MOISTURE, AND SOLIDS. →THEY PROVIDE HIGH LIQUID LINE FLOW CAPACITIES OR LARGER AIR- CONDITIONING AND REFRIGERATION JOBS. →SOME KEY FEATURES OF THE DEMOUNTABLE SERIES : SIMPLIFIED INTERNAL HARDWARE FOR EASY INSTALLATION. FULL FLOW FITTINGS FOR LOW PRESSURE DROP. CORROSION-RESISTANT EPOXY PAINT FINISH. STURDY STEEL FOR LONG LIFE DURABILITY. SAFE WORKING PRESSURE-500 PSI. BURST PRESSURE-2500PSI.

Item No.	Connection D	Dimension A	Dimension B	NO. of cores
CD-1100	5/8 ODF	8-3/4	5-12	1
CD-1101	3/4 ODF	8-3/4	5-12
CD-1102	7/8 ODF	8-7/8	5-5/8
CD-1103	1-1/8 ODF	9-3/16	5-15/16
CD-1104	1-3/8 ODF	9-3/16	5-15/16
CD-1105	1-5/8 ODF	9-3/16	5-15/16
CD-1106	2-/8 ODF	9-3/16	5-15/16
CD-2202	7/8 ODF	14-1/2	11-1/4	2
CD-2203	1-1/8 ODF	14-13/16	11-9/16
CD-2204	1-3/8 ODF	14-13/16	11-9/16
CD-2205	1-5/8 ODaF	14-5/6	11-11/16
CD-2206	2-1/8 ODF	15-7/16	12-3/16
CD-3303	1-1/8 ODF	20-3/8	17-1/8	3
CD-3304	1-3/8 ODF	20-3/8	17-1/8
CD-3305	1-5/8 ODF	20-1/2	17-1/4
CD-3306	2-1/8 ODF	21	17-3/4
CD-4404	1-3/8 ODF	25-13/16	22-9/16	4
CD-4405	1-5/8 ODF	25-15/16	22-11/16
CD-4406	2-1/8 ODF	26-7/16	22-11/16

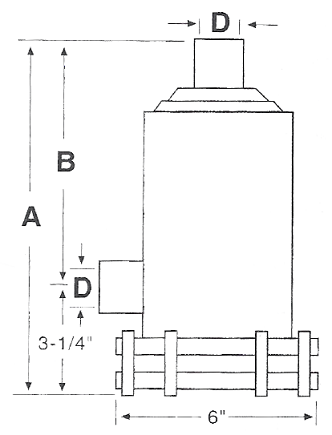

Dimensions
