Thermo+RTD Type Recorder

Model:R1-6111

Product details:
 Adobe Reader Download.

Products Information


R1
-6111 Thermo+RTD Type Recorder



Products Features
R1-6111 Temperature + RTD Data Logger
R1-6111 is a Temperature + RTD temperature data logger, which is light and handy but firm and solid. We could operate it in every place.
One button to operate.
Power Source: CR2032 battery 1 pcs.
Save the electricity and lengthen the battery using time.
Data logging capacity: 9999 sets per channel.
Data will be saved even it is running out of power.
Data logger can be connected with PC through USB cable. And it can downloading the data and set up the internal functions.
Software is easy to operate.

→4 - 1/2 digit 19999 LCD display.
→The five sections battery electricity shows symbols.
→CH1–The temperature sensor.
→CH2–The RTD temperature of input measurement.
→USB cable & Software. (Option)
→Software can convert English, Traditional Chinese, Simplified Chinese, and Japanese
   display.
→Windows XP (32-bit), Windows 7 (32-bit/64-bit).
Specifications
Display mode 4 1/2 digit LCD, max digit 19999
Polarity showing Positive value not show, negative value show " - "
Overload indicator Positive value show " OL ", negative value show " -OL "
Measurement range Temperature range : -20°C ~ 70°C (-4°F ~ 158°F)
RTD range : Pt 100 385 : -200°C ~ 800°C (-328°F ~ 1472°F)
Accuracy Temperature sensor : ±0.6°C / 1.2°F (temperature range of
0°C~45°C / 32°F~113°F)
RTD : ±0.1% of reading +0.5°C (1°F)
RTD temperature coefficient 0.01 % of reading + 0.03 °C per °C (0.05 °F per °F)
Resolution 0.1
Measure interval time of record 1 second ~ 59 minutes 59 seconds
Data logging capacity 9999 sets per channel
Battery CR2032
Battery life (Interval=15Min) About 1 year
Operating temperature -20°C ~ +70°C (-4°F ~ +158°F)
Storage temperature -30°C ~ +80°C (-22°F ~ +176°F)
Dimension 86mm×45mm×25mm (L×W×H)
Weight (include battery) About 63g
Accessories
CR2032 battery x 1 pcs
→3 pin mini din cable x 1 pcs
Users manual x 1 pcs
Optional accessories

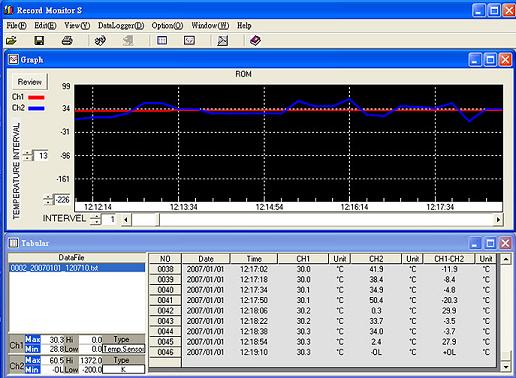

→Record Monitor S software KIT x 1 set
→There are include Record Monitor S software CD x 1pcs, and R1-USB transmit cable
   x 1pcs.
Software





Product Remarks:
