Meters\Analog V/A/Hz Panel Meter and PC Board

Panel Meter

Model:YS Series

Product details:
 Adobe Reader Download.

Products Information


YS-8 Series Panel Meter
YS-10 Series
Panel Meter


YS-8                         YS-10

Products Features
Dimension : 78 x 78 x 40mm (YS-8)
                      98 x 98 x 50mm (YS-10)
Class : 2.5 (YS-8)
               1.5 (YS-10)
Item Range Item Range
AC-A 1A~50A DC-A 50μA~50A
AC-A 1A~5A DC-V 30mV~600V
AC-V 150V~600V RPM 50~6000
AC-V 1V~600V HZ 45~65
Dimensions (unit : mm)

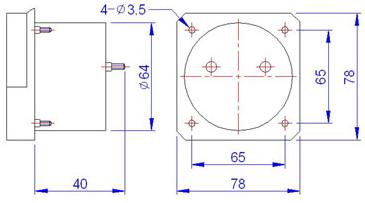

→YS-8 :

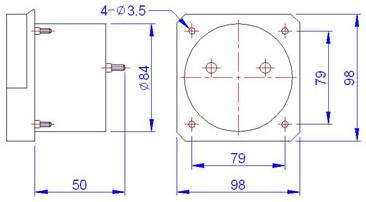

→YS-10 :

Products Information


YS-12 Series Panel Meter



Products Features
Dimension : 117 x 117 x 70mm
Class : 1.5
Item Range Item Range
AC-A 1A~60A DC-V 30mV~600V
AC-A 1A~5A RPM 50~6000
AC-V 150V~600V HZ 45~65
AC-V 1V~600V KW 1Ф~3Ф
DC-A 50μA~60A PF (COS θ) 1Ф~3Ф
Dimensions (unit : mm)

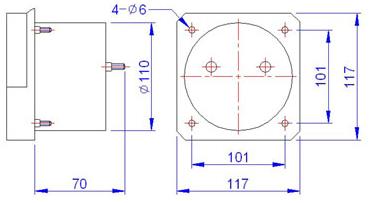

→YS-12 :
