Meters\Analog V/A/Hz Panel Meter and PC Board

Panel Meter

Model:L Series

Product details:
 Adobe Reader Download.

Products Information


L-72 Series Panel Meter
L-96 Series Panel Meter


L-72                           L-96

Products Features
Dimension : 72 x 72 x 85mm (L-72)
                      96 x 96 x 65mm (L-96)
Class : 1.5
Item Range Item Range
AC-A 1A~5A RPM 50~6000
AC-V 1V~600V HZ 45~65
DC-A 50μA~30A KW 1Ф~3Ф
DC-V 30mV~600V PF (COS θ) 1Ф~3Ф
Dimensions (unit : mm)

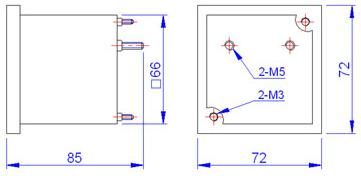

→L-72 :

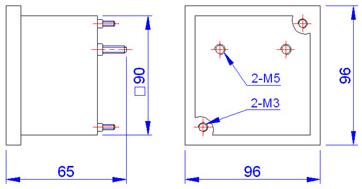

→L-96 :

Products Information


L-80 Series Panel Meter
L-110
 Series Panel Meter


L-80                         L-110

Products Features
Dimension : 80 x 80 x 95mm (L-80)
                      107 x 107 x 95mm (L-110)
Class : 1.5
Item Range Item Range
AC-A 1A~5A RPM 50~6000
AC-V 1V~600V HZ 45~65
DC-A 50μA~30A KW 1Ф~3Ф
DC-V 30mV~600V PF (COS θ) 1Ф~3Ф
Dimensions (unit : mm)

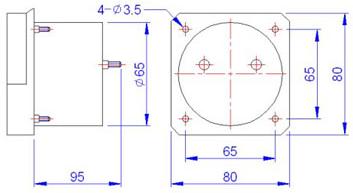

→L-80 :

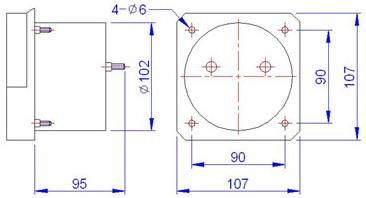

→L-110 :
Product Remarks:
