Meters\Analog V/A/Hz Panel Meter and PC Board

Panel Meter

Model:SR Series

Product details:
 Adobe Reader Download.

Products Information


SR-48 Series Panel Meter



Products Features
Dimension : 48 x 48 x 59mm
Class : 1.5
Item Range Item Range
AC-A 5A~30A AC-V 150V~600V
Dimensions (unit : mm)

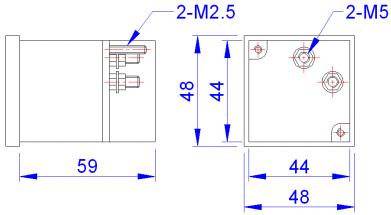

→SR-48 :

Products Information


SR-72 Series Panel Meter
SR-96 Series Panel Meter


SR-72                        SR-96

Products Features
Dimension : 72 x 72 x 55mm (SR-72)
                      96 x 96 x 65mm (SR-96)
Class : 1.5
Item Range Item Range
AC-A 1A~60A DC-V 30mV~600V
AC-A 1A~5A RPM 50~6000
AC-V 150V~600V HZ 45~65
AC-V 1V~600V KW 1Ф~3Ф
DC-A 50μA~60A PF (COS θ) 1Ф~3Ф
Dimensions (unit : mm)

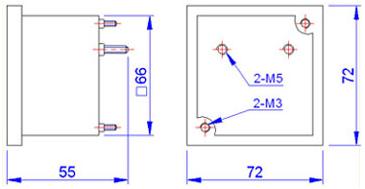

SR-72 :

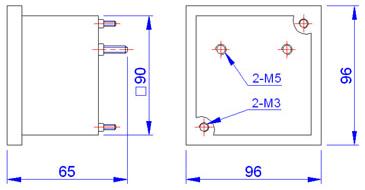

SR-96 :

Products Information


SR-721 Series Panel Meter
SR-961 Series Panel Meter


SR-721                      SR-961

Products Features
Dimension : 72 x 72 x 55mm (SR-721)
                      96 x 96 x 65mm (SR-961)
→Alarm indication
Class : 1.5
Item Range Item Range
AC-A 1A~60A DC-V 30mV~600V
AC-A 1A~5A RPM 50~6000
AC-V 150V~600V HZ 45~65
AC-V 1V~600V KW 1Ф~3Ф
DC-A 50μA~60A PF (COS θ) 1Ф~3Ф
Dimensions (unit : mm)

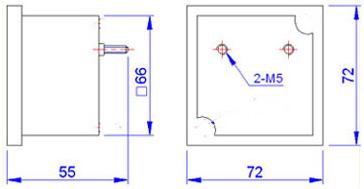

→SR-721 :

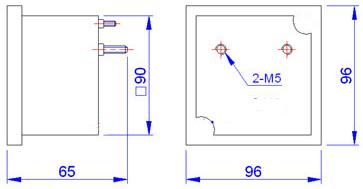

→SR-961 :

Product Remarks:
