Meters\Analog V/A/Hz Panel Meter and PC Board

Panel Meter

Model:TH Series

Product details:
 Adobe Reader Download.

Products Information


TH-38 Series Panel Meter



Products Features
Dimension : 40 x 40 x 35mm
Class : 2.5
Item Range Item Range
DC-A 50μA~30A DC-V 50mV~600V
RPM 50~1800
Dimensions (unit : mm)

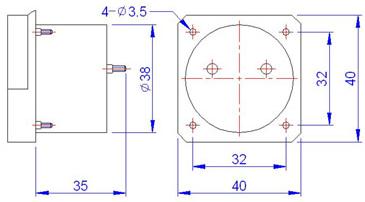

→TH-38 :

Products Information


TH-50 Series Panel Meter
TH-65 Series Panel Meter


TH-50                     TH-65

Products Features
Dimension : 51 x 51 x 40mm (TH-50)
                      62.5 x 62.5 x 40mm (TH-65)
Class : 2.5
Item Range Item Range
AC-A 1A~30A (TH-50)
1A~50A (TH-65)
DC-A 50μA~30A (TH-50)
50
μA~50A (TH-65)
AC-V 150V~300V (TH-50)
150V~600V (TH-65)
DC-V 50mV~600V (TH-50)
30mV~600V (TH-65)
AC-V 1V~600V RPM 50~6000
Dimensions (unit : mm)

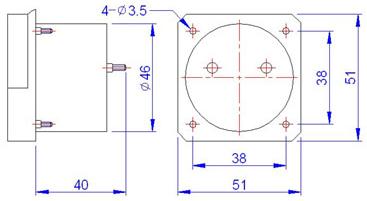

→TH-50 :

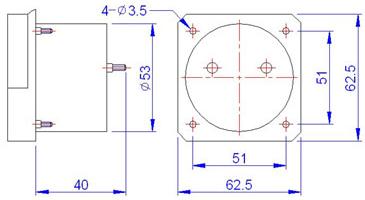

→TH-65 :

Products Information


TH-100S Series Panel Meter
TH-120S Series Panel Meter


TH-100S                 TH-120S

Products Features
Dimension : 10080 x 40mm (TH-100S)
                      120 x 100 x 40mm (TH-120S)
Class : 1.5
Item Range Item Range
AC-A 1A~50A DC-A 50μA~50A
AC-A 1A~5A DC-V 30mV~600V
AC-V 150V~600V RPM 50~6000
AC-V 1V~600V HZ 45~65
Dimensions (unit : mm)

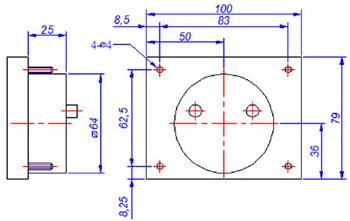

→TH-100S

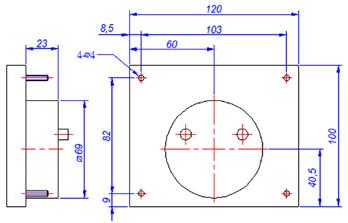

→TH-120S

Products Information


TH-670 Series Panel Meter



Products Features
Dimension : 67 56 x 40mm
Measuring items : AC-A, AC-V, DC-A, DC-V, RPM。
Class : 2.5
Item Range Item Range
AC-A 1A~50A DC-A 50μA~50A
AC-V 150V~600V DC-V 30mV~600V
AC-V 1V~600V RPM 50~6000
Dimensions (unit : mm)

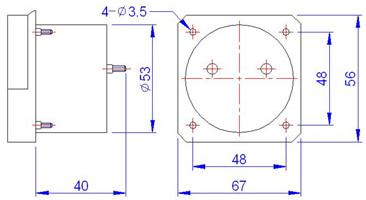

→TH-670 :

Product Remarks:
