Heaters\Ceramic Infrared Heaters

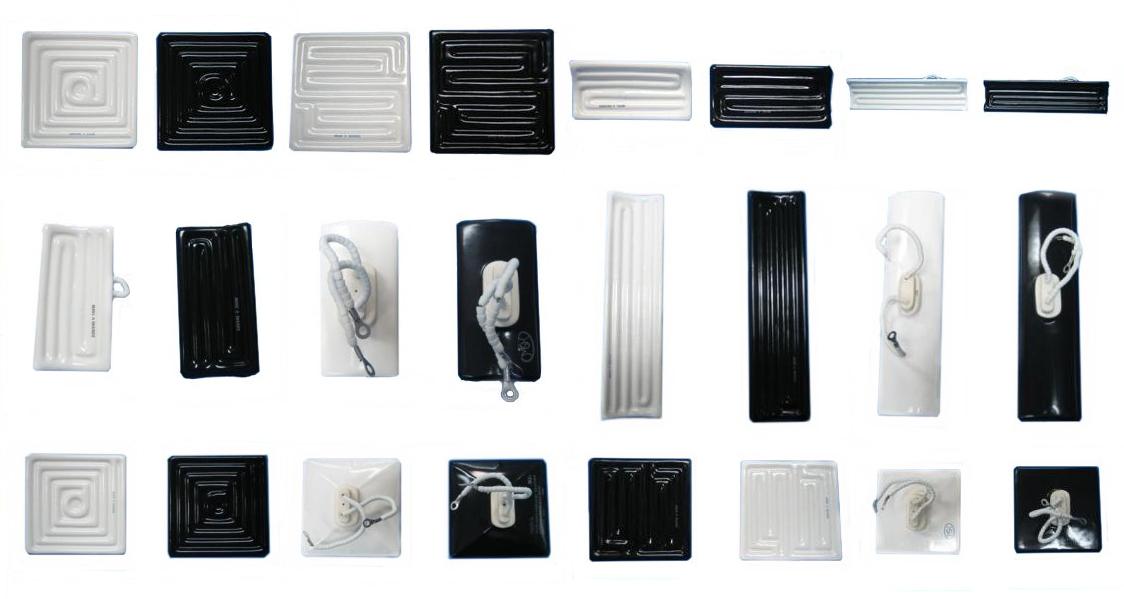

Ceramic Infrared Heaters
Model:Ceramic Infrared Heaters
Product details:
 Adobe Reader Download.

Products Information

Ceramic Infrared Heaters
 Download PDF Catalogue


Products Features
→Application : Thermoforming, Ovens, Painting Dry House etc.
→Material : The nichrome resistance wire cast-in glazed ceramic to protect it from oxidation
                  or corrosion.
→Typical maximum watt density : 44w/inch² or 7w/cm²
→Standard Specification : Half Trough Type (120mm L x 60mm W)
                                       Full Trough Type (240mm L x 60mm W)
                                       Plane and Square Type (120mm L x 120mm W)
                                       Square Type (120mm L x 120mm W)
Radiation Distance : 100mm to 200mm
Termination type : Standard is with ring terminal, pin and Y terminal are optional.
→Refer to model NO. of specification, built-in “J” or “K” type of thermocouple are available.
→If possible, when you want to order the heater please indicating working temperature and
   circumstance in order to design proper products and keep long life for use.
Product Remarks:
