→Application : Semiconductor Manufacturing, Medical Equipment, Lab Equipment, Hot Glue
Melt, Other Industries etc.
→Cast-In material and operating temperature : Aluminum (Standard), Up to 300°C
→Typical maximum watt density : 32 w/inch² or 5 w/cm²
→Standard Specification : All Cast-In heaters are produced by order please indicate following
information when inquiry or order.
a. Cast-In Material : refer to item 2, if not mentioned, aluminum will be produced.
b. Size and shape : Maximum size is 150 cmx150cm and A drawing is necessary.
c. Voltages : Maximum is 480V.
d. Wattages.
e. Phases : Single phase or 3 phases.
f. Working temperature : Maximum is 650oC.
g. Termination and connection: providing drawing.
h. Heater exit location.
i. Application and circumstance.
→If possible, when you want to order the heater please indicating working temperature and
circumstance in order to design proper products and keep long life for use.

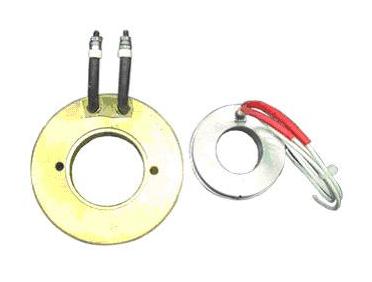

Model：Cast-In Heater
