→Application : Liquid Heating, Air Heating, Food Equipment, Package Equipment, Ovens,
Tanks, Electroplating and Electrolytic Equipment etc.
→Typical maximum watt density : For Water = 65 w/inch² or 10 w/cm²
For Air = 32 w/inch² or 5 w/cm²
For Oil = 20 w/inch² or 3 w/cm²
→Minimum unheated section on each end : minimum 50 m/m
→Termination type : Tubular heater terminal with SUS 304 thread connection, Φ8-M12,
Φ11-5/8", Φ13.8-3/4"
Immersion heater flange : Iron, SUS 304, SUS316, from 2” to 12”
Immersion heater thread connector : Brass, SUS 304, SUS316, from
1-1/2" to 2”
Immersion heater terminal box : Bakelite
Hanging type
→Voltage : 100V~480V
→Special immersion heater for optical electronic industry use (Teflon, quartz tube).
→If possible, when you want to order the heater please indicating working temperature and
circumstance in order to design proper products and keep long life for use.

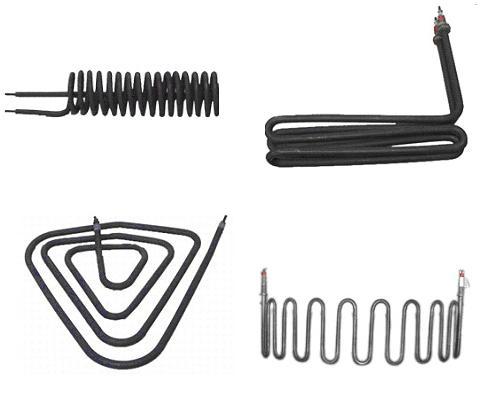

Model：Tubular/Immersion Heater
