Heaters\Mica Band Heater
Mica Band Heater
Model:Mica Band Heater
Product details:
 Adobe Reader Download.

Products Information

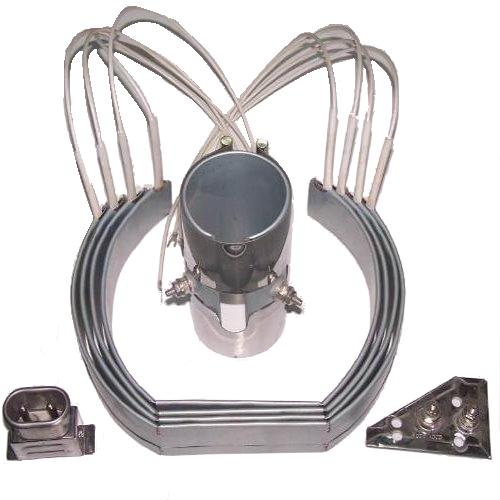

Mica Band Heater
 Download PDF Catalogue

Products Features
→Application : Clamped to cylindrical surfaces for heating such as injection machinery,
                       extrusion machinery and blow mold machinery etc.
→Material : Steel coating zin with mica insulation (Standard)
→Typical maximum watt density : 20~25W/inch² or 3-4W/cm²
→Maximum operating temperature :
250°C (Standard)
→Termination type : With screw / With box / With wire / With socket
→Diameter (both inch and m/m available).
→Width (both inch and m/m available).
Voltage : 100V~480V
→If possible, when you want to order the heater please indicating working temperature and
   circumstance in order to design proper products and keep long life for use.
Product Remarks:
