→Application : Hot plates, hot stamping, vulcanizing presses, sealing equipment, dies and
molds, packaging and food warming equipment.
→Material : Steel coating zin with mica insulation (Standard)
→Typical maximum watt density : 20~25W/inch² or 3-4W/cm²
→Maximum operating temperature : 250°C (Standard)
→Termination type : With screw / With socket / With wire
→Diameter (both inch and m/m available).
→Width (both inch and m/m available).
→Voltage : 100V~480V
→If possible, when you want to order the heater please indicating working temperature and
circumstance in order to design proper products and keep long life for use.

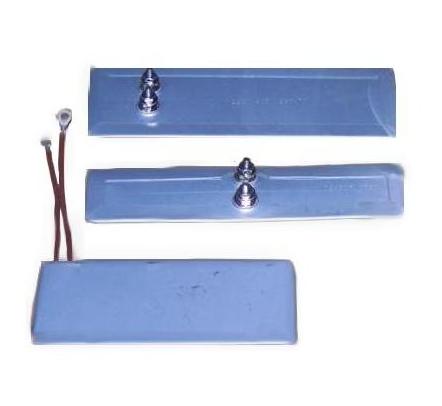

Model：Mica Plate Heater
