MC-5900 Series PID Temperature Module
 Download PDF Catalogue
Download PDF User's manual
|
|
| Products
Features |
|
→Modularize, small
size, saving space, and easy wiring.
→Verity installing methods : DIN rail, panel, or surface
mounting.
→PID auto-tuning function.
→Support Modbus RTU communication protocol, can be linked to
256 devices through
RS-485 interface.
→Dual loop output control (heating / cooling control)
→Current transformer function for heater break alarm.
→Thermocouple and PT1OO ohm is selectable.
→Remote set-point.
→Open loop motor valve control.
→Retransmission output.
|
|

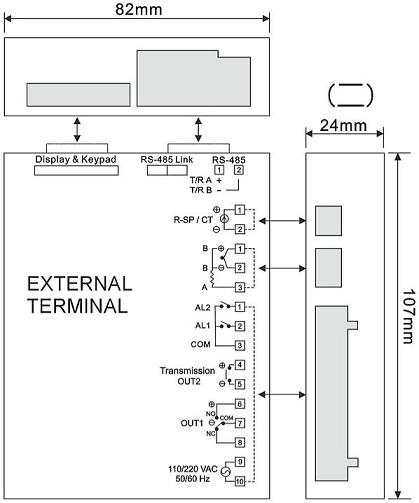

Dimensions & Panel Cutout |
|
 |
|
Specifications |
|
Input Signal |
Type of Input |
TC (K, J, T, R, E, S, B, N) |
|
RTD (PT100, JPT100) |
|
Linear (1~5V, 4~20mA) |
|
Input Sampling Time |
300ms |
|
Indication |
Constant Value Storage System |
Non-volatile memory (EEPROM) |
|
Control Mode |
Proportional Band (P) |
0.0~3000 |
|
Integral Time (I) |
0~7200 |
|
Derivative Time (D) |
0~1800 |
|
Cycle Time |
0~150 |
|
Dead Band |
0.0~200.0 |
|
Control Output |
Relay Output |
Relay
Contact, SPST 3A/240VAC |
|
Voltage Output |
Voltage Pulse |
|
Linear Output |
4~20mA, 1~5V |
|
Motor Control Output |
Open loop motor valve |
|
Alarm |
Channel |
2 Channels (Optional) |
|
Communication |
Type of Communication |
RS-485 Modbus RTU protocol |
|
General Specifications |
Power Supply Voltage & Frequency |
90~260VAC, 50/60Hz |
|
Power Consumption |
<3.5VA |
|
Ambient Temperature |
-10℃~55℃ |
|
Ambient Humidity |
0~80% RH |
|
| |
|
|
|
|
|
