MC-5x38 Series PID Temperature Controllers
Download PDF Catalogue
Download PDF User's manual
|
|
Products Features |
→CE certification
→Four groups of PID
→Frequently uses the parameter may freely arrange to commonly
used position
→T/C, RTD, Linear input selectable
→Auto / Manual control mode optional
→Duplex Output Mode (Heat / Cool) through 2 control processes
→Alarm Up to 3 alarm set
→CT for heater break alarm
→Programmable mode up to 8 ramp / soak segments
→Operates on any line voltage from 90V
→Optional RS-232 and RS-485
→Open loop motor valve control
→Remote set-point
→Soft start
→Retransmission output
|

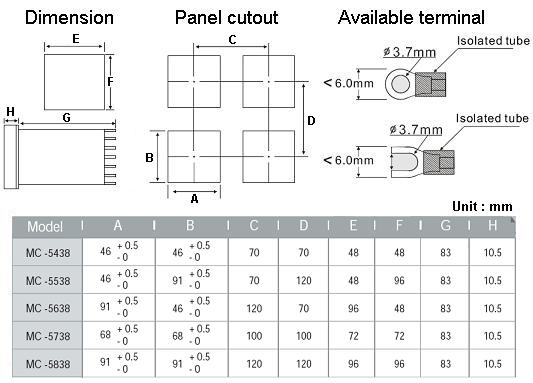

Dimensions & Panel Cutout |
![](../../upload/Image/Control_Instruments/MC5x38_Dimension.JPG) |

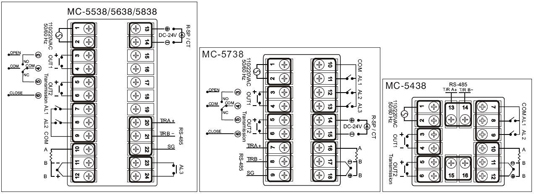

Terminal Connections |
![](../../upload/Image/Control_Instruments/MC5x38_Terminal_Connections.JPG) |
Specifications |
Input Signal |
Type of Input |
TC (K, J, T, R, E, S, B, N) |
RTD (PT100, JPT100) |
Linear (1~5V, 4~20mA) |
Input Sampling Time |
300ms |
Indication |
Constant Value Storage System |
Non-volatile memory (EEPROM) |
Control Mode |
Proportional Band (P) |
0.0~3000 |
Integral Time (I) |
0~7200 |
Derivative Time (D) |
0~1800 |
Cycle Time |
0~150 |
Dead Band |
0.0~200.0 |
Control Output |
Relay Output Relay |
Contact, SPST 3A/240VAC |
Voltage Output |
Voltage Pulse |
Linear Output |
4~20mA, 1~5V |
Motor Control Output |
Open loop motor valve |
Alarm |
Channel |
3 Channels (Optional) |
Communication |
Type of Communication |
RS-485 Modbus RTU protocol |
General Specifications |
Power Supply Voltage & Frequency |
90~260VAC, 50/60Hz |
Power Consumption |
<3.5VA |
Ambient Temperature |
-10℃~55℃ |
Ambient Humidity |
0~80% RH |
|
| |
|
|
|
|
|
