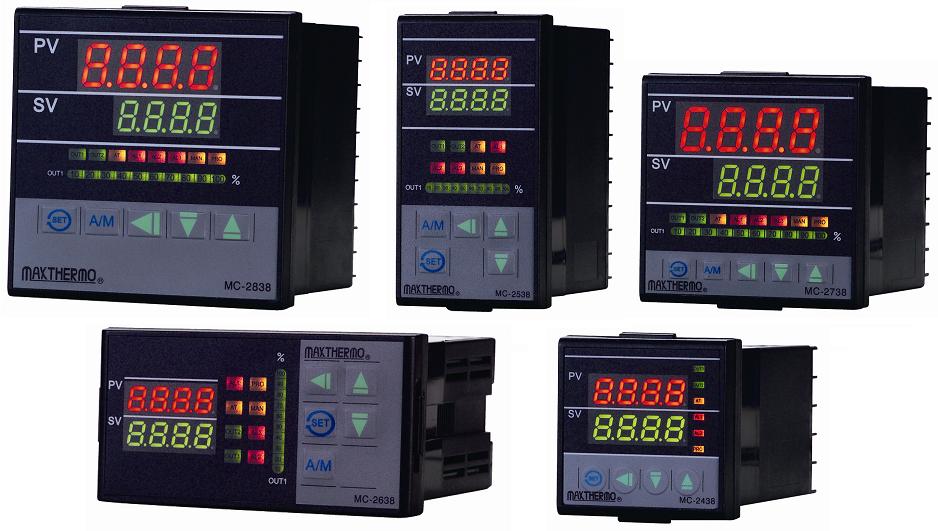

MC-2x38 Series PID Temperature Controllers Download PDF Catalogue Download PDF User's manual
Products Features
→PID auto tuning. →PID control, or Heat/Cool PID control(OUT1+OUT2). →Multi range input(TC, RTD, mA/mV/V). →Relay output, SSR drive, mA/V changeable by a module. →Up to 3 points alarm, with 18 types of function and 10 types of mode. →Non-Volatile memory. →Self-diagnosis function. →Auto Zero and Auto Span circuit keep good accuracy. →Universal power range AC 85V~265V. →Data lock function. →Remote Setpoint Input. →Analog Retransmission Output. →Soft start control mode. →RS232 or RS485 is available for remote monitoring.

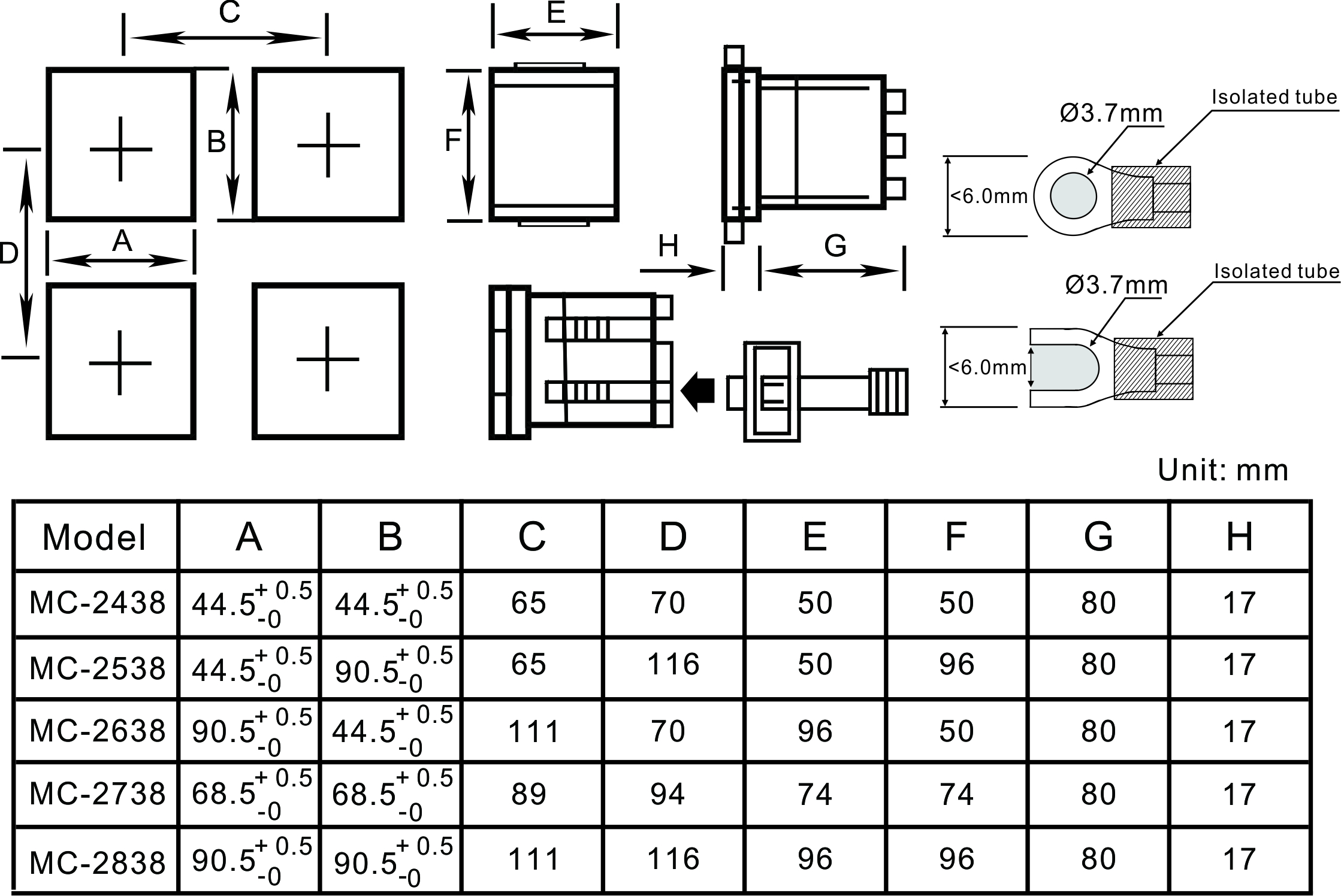

Dimensions & Panel Cutout

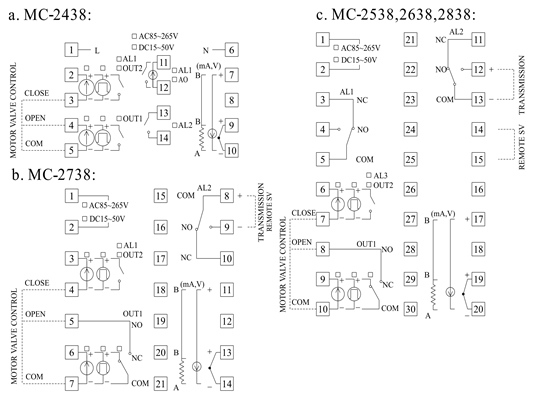

Terminal Connections

Specifications
Input Signal	Type of Input	TC (K, J, T, R, E, S, B, N)
		RTD (DIN PT100Ω, JIS PT100Ω)
		Linear (0~20mV,0~50mV,0~5V, 1~5V, 0~10V, 1~10V,2~10V, 0~20mA, 4~20mA)
	Sampling Time	250ms
Indication	LED Displays	Bright, and easy-to-read display module
Control Mode	Proportional Band (P)	0.0~3000.0
	Integral Time (I)	0~7200 Sec
	Derivative Time (D)	0~1800 Sec
	Cycle Time	0~150 Sec
	Dead Band	-200.0~200.0
Control Output	Relay Contact Output	SPST / SPDT 3A/240VAC
	Voltage Pulse Output	ON: 24V DC, OFF: OV DC (Maximum load current 20mA)
	Current Output	0~20mA DC, 4~20mA DC (Maximum load resistance 300Ω)
	Continuous Voltage Output	0~5V DC, 1~5V DC, 0~10V DC, 2~10V DC (Maximum load current 20mA)
	Position Motor Valve Output	Open loop motor valve (3-wire) Close loop motor valve (6-wire)
Alarm	Alarm Output	3 Channels (Optional)
Communication	Type of Communication	RS232, RS-485 Modbus RTU protocol
General Specifications	Power Supply Voltage & Frequency	85~265VAC, 50/60Hz
	Power Consumption	<4VA
	Memory Backup	Non-volatile memory (EEPROM)
	Ambient Temperature	-10℃~50℃
	Ambient Humidity	20~90% RH (Non condensing)
