Control Instruments\Temperature Controllers

Temperature Controller

Model：MC-3000 Series

Product details：
 Adobe Reader Download.

Products Information

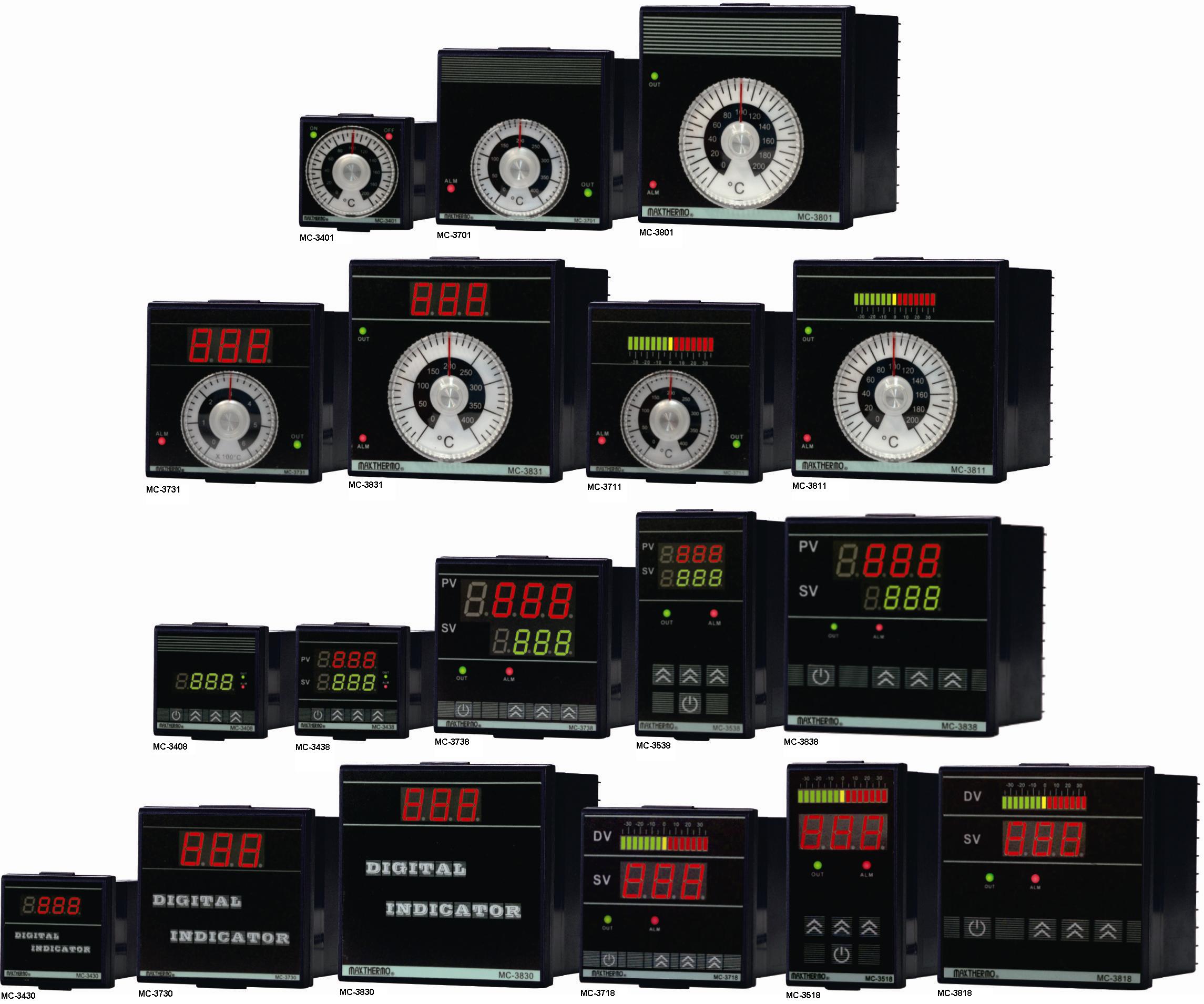

MC-3000 Series
Temperature Controllers
Download PDF Catalogue


MC-3430 / MC-3730 / MC-3830

MC-3408 / MC-3438 / MC-3518 / MC-3538

MC-3718 / MC-3738 / MC-3818 / MC-3838

MC-3401 / MC-3701 / MC-3711 / MC-3731

MC-3801 / MC-3811 / MC-3831
Products Features
→Advanced appearance, precise structure and well performance on terminals.
   Innovation for substitutes of traditional analog or thumb switch types controller.
→Built-In Micro-process CPU
→On-Off / PD control mode for option
→No mechanical faulty by panel setting
→6 kinds of alarm mode and standby mode for option
→Precise accuracy on deviation by LED lights
→Protection on loop broken
Specifications
Indicating Only
Model MC-3430 MC-3730 MC-3830
Size 48x48mm 72x72mm 96x96mm
Accuracy 0.3% F.S.
Input K, J, R, PT100Ω
Supply Voltage AC 85~265V 50/60Hz
Digital Setting
Model MC-3408 MC-3438 MC-3518 MC-3538
Size 48x48mm 48x96mm
Accuracy 0.3% F.S.
Control Action PD, ON / OFF, Optimal
Input K, J, R, PT100Ω
Output RELAY, SSR DRIVE DC 24V
Alarm RELAY
Temp. Range -99~99ºC(PT100Ω only) , 0.0~99.0ºC, 0~199ºC, 0~299ºC, 0~399ºC,
0~499ºC, 0~599ºC, 0~699ºC, 0~799ºC, 0~899ºC, 0~999ºC
Supply Voltage AC 85~265V 50/60Hz
Model MC-3718 MC-3738 MC-3818 MC-3838
Size 72x72mm 96x96mm
Accuracy 0.3% F.S.
Control Action PD, ON / OFF, Optimal
Input K, J, R, PT100Ω
Output RELAY, SSR DRIVE DC 24V
Alarm RELAY
Temp. Range -99~99ºC(PT100Ω only) , 0.0~99.0ºC, 0~199ºC, 0~299ºC, 0~399ºC,
0~499ºC, 0~599ºC, 0~699ºC, 0~799ºC, 0~899ºC, 0~999ºC
Supply Voltage AC 85~265V 50/60Hz
Analog Setting
Model MC-3401 MC-3701 MC-3711 MC-3731
Size 48x48mm 72x72mm
Accuracy 0.3% F.S.
Control Action PD, ON / OFF, Optimal
Input K, J, PT100Ω K, J, R, PT100Ω
Output RELAY, SSR DRIVE DC 24V
Alarm None RELAY
Temp. Range 0~100ºC, 0~200ºC, 0~400ºC, 0~600ºC, 0~800ºC, 0~1000ºC
Supply Voltage AC 85~265V 50/60Hz
Model MC-3801 MC-3811 MC-3831
Size 96x96mm
Accuracy 0.3% F.S.
Control Action PD, ON / OFF, Optimal
Input K, J, R, PT100Ω
Output RELAY, SSR DRIVE DC 24V
Alarm RELAY
Temp. Range 0~100ºC, 0~200ºC, 0~400ºC, 0~600ºC, 0~800ºC, 0~1000ºC
Supply Voltage AC 85~265V 50/60Hz

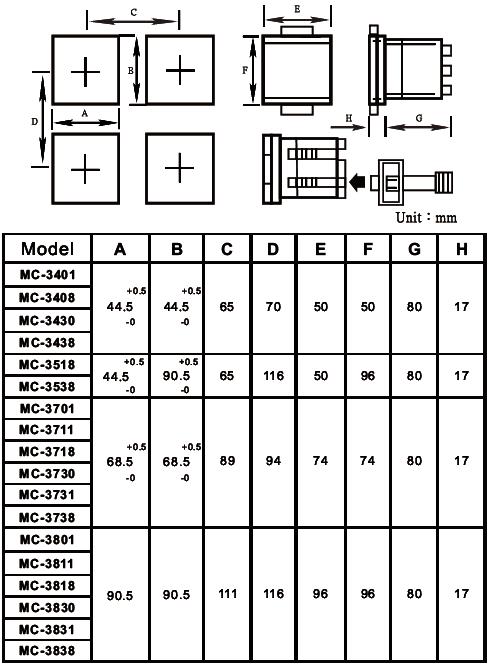

Dimensions & Panel Cutout

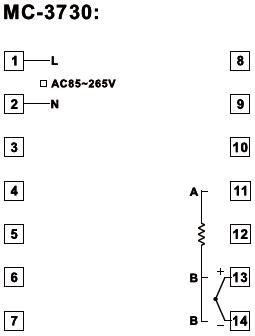

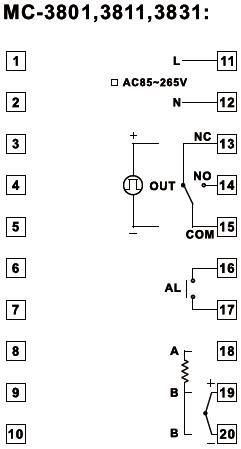

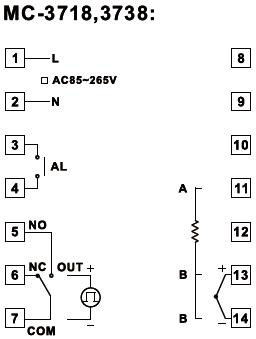

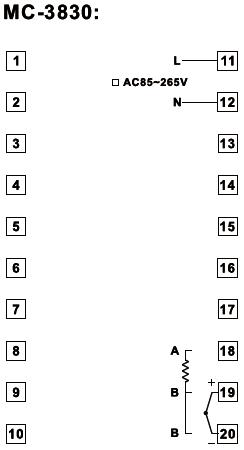

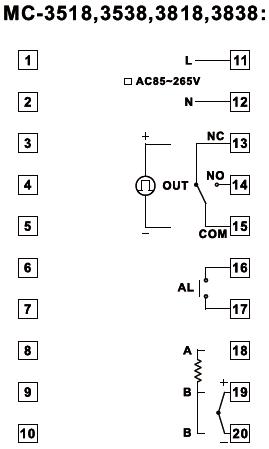

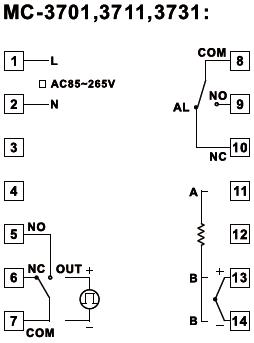

Terminal Connections


Product Remarks：
