Specifications |
|
Type |
Specification |
Color |
Order Code Type |
|
Contacts |
|
1NO+1NC |
2NO+2NC |
3NO+3NC |
|
E2IFR-1C |
Illuminated
Push Buttons
Flat head With 220V Neon Bulb |
white
green
red
yellow |
E2IFR-1C-1
E2IFR-1C-3
E2IFR-1C-4
E2IFR-1C-5 |
E2IFR-2C-1
E2IFR-2C-3
E2IFR-2C-4
E2IFR-2C-5 |
E2IFR-3C-1
E2IFR-3C-3
E2IFR-3C-4
E2IFR-3C-5 |
|
E2ILR-1C |
Illuminated
Push Buttons
Protruding head
With 220V Neon Bulb |
white
green
red
yellow |
E2ILR-1C-1
E2ILR-1C-3
E2ILR-1C-4
E2ILR-1C-5 |
E2ILR-2C-1
E2ILR-2C-3
E2ILR-2C-4
E2ILR-2C-5 |
E2ILR-3C-1
E2ILR-3C-3
E2ILR-3C-4
E2ILR-3C-5 |
|
E2IMR-1C |
Illuminated
Push Buttons
Mushroom head
37mm Dia With
220V Neon Bulb |
green
red
yellow |
E2IMR-1C-3
E2IMR-1C-4
E2IMR-1C-5 |
E2IMR-2C-3
E2IMR-2C-4
E2IMR-2C-5 |
E2IMR-3C-3
E2IMR-3C-4
E2IMR-3C-5 |
|
E2IKR-1C |
Illuminated
Push Buttons
Latching
Mushroom head
37mm Dia With
220V Neon Bulb |
green
red
yellow |
E2IKR-1C-3
E2IKR-1C-4
E2IKR-1C-5 |
E2IKR-2C-3
E2IKR-2C-4
E2IKR-2C-5 |
E2IKR-3C-3
E2IKR-3C-4
E2IKR-3C-5 |
|
E2TFR-1C |
Illuminated
Push Buttons
Flat head
With 220/6V
Transformer |
white
green
red
yellow |
E2TFR-1C-1
E2TFR-1C-3
E2TFR-1C-4
E2TFR-1C-5 |
E2TFR-2C-1
E2TFR-2C-3
E2TFR-2C-4
E2TFR-2C-5 |
E2TFR-3C-1
E2TFR-3C-3
E2TFR-3C-4
E2TFR-3C-5 |
|
E2TLR-1C |
Illuminated
Push Buttons
Protruding head
With 220/6V
Transformer |
white
green
red
yellow |
E2TLR-1C-1
E2TLR-1C-3
E2TLR-1C-4
E2TLR-1C-5 |
E2TLR-2C-1
E2TLR-2C-3
E2TLR-2C-4
E2TLR-2C-5 |
E2TLR-3C-1
E2TLR-3C-3
E2TLR-3C-4
E2TLR-3C-5 |
|
E2TMR-1C |
Illuminated Push
Buttons Mushroom
head 37mm Dia
With 220/6V
Transformer |
green
red
yellow |
E2TMR-1C-3
E2TMR-1C-4
E2TMR-1C-5 |
E2TMR-2C-3
E2TMR-2C-4
E2TMR-2C-5 |
E2TMR-3C-3
E2TMR-3C-4
E2TMR-3C-5 |
|
E2TKR-1C |
Illuminated Push
Buttons Latching
Mushroom head
37mm Dia
With 220/6V
Transformer |
green
red
yellow |
E2TKR-1C-3
E2TKR-1C-4
E2TKR-1C-5 |
E2TKR-2C-3
E2TKR-2C-4
E2TKR-2C-5 |
E2TKR-3C-3
E2TKR-3C-4
E2TKR-3C-5 |

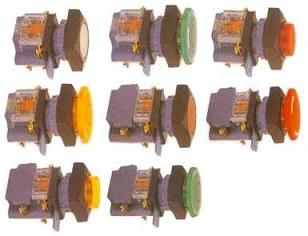

Model：E2 Series
