Electronic Control Component & Others\Push Buttons

Illuminated Double Push Buttons SW.

Model：E2 / E3 Series

Product details：

Adobe Reader Download.

*Products Information*

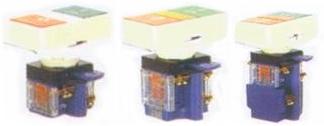

E2XTL-1C Series Illuminated Double Push Buttons SW.	E2BTL-1C / E2ITL-1C / E2TTL-1C

Specifications
Type	Specification	Color lens	Order Code Type
E2BTL-1C	Double Push Button Ф22~25mm	Clear	E2BTL-1C
E2ITL-1C	Illuminated. Double Push button with 220V Neon Bulb Ф22~25mm	green red yellow clear	E2ITL-1C-3 E2ITL-1C-4 E2ITL-1C-5 E2ITL-1C-7
E2TTL-1C	Illuminated. Double Push button with 220/6V Transformer Ф22~25mm	green red yellow clear	E2TTL-1C-3 E2TTL-1C-4 E2TTL-1C-5 E2TTL-1C-7

*Products Information*

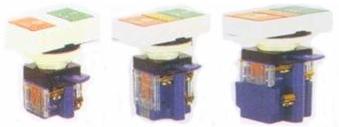

E3XTL-1C Series Illuminated Double Push Buttons SW.	E3BTL-1C / E3ITL-1 / E3TTL-1C

Specifications
The universal contact block with lamp socket the lens (centre) is illuminated.
Body and Bezel	misty gray
Buttons	green and red
Lens	clip-on type, internally ribbed
Fixing	Thermoplastic fixing ring
Operating	6mm
Protect in Class	IP 40 front of panel
Type	Specification	Color lens	Order Code Type
E2BTL-1C	Double Push Button Ф30mm	Clear	E3BTL-1C
E2ITL-1C	Illuminated. Double Push button with 220V Neon Bulb Ф30mm	green red yellow clear	E3ITL-1C-3 E3ITL-1C-4 E3ITL-1C-5 E3ITL-1C-7
E2TTL-1C	Illuminated. Double Push button with 220/6V Transformer Ф30mm	green red yellow clear	E3TTL-1C-3 E3TTL-1C-4 E3TTL-1C-5 E3TTL-1C-7

Product Remarks：
