Products Information

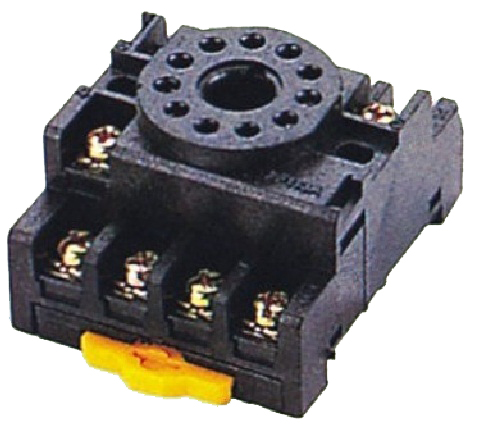

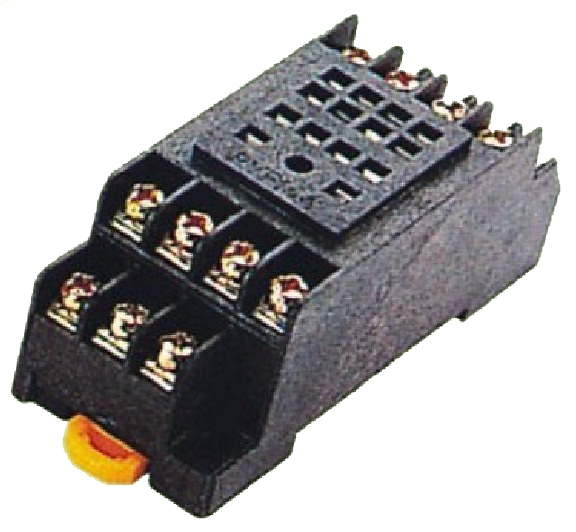

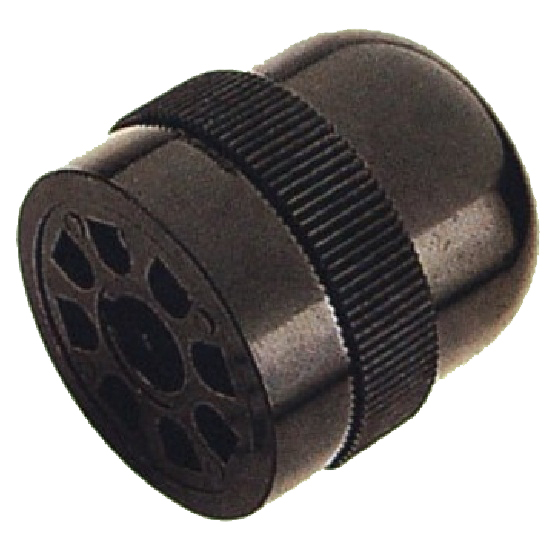

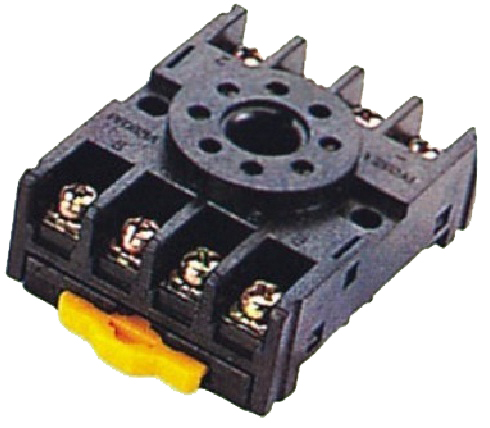

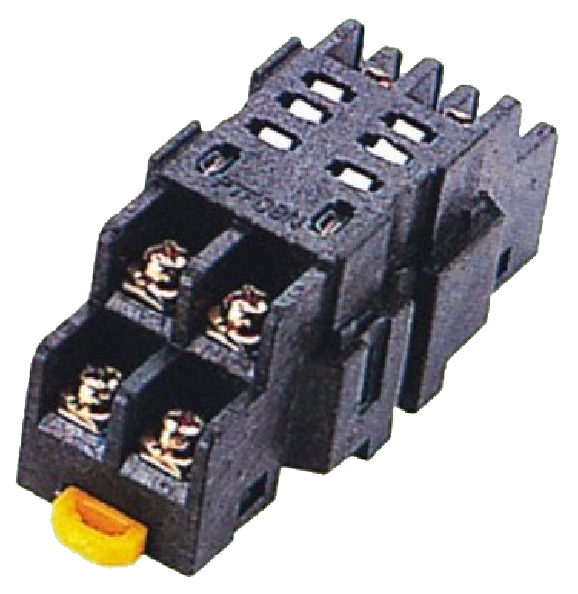

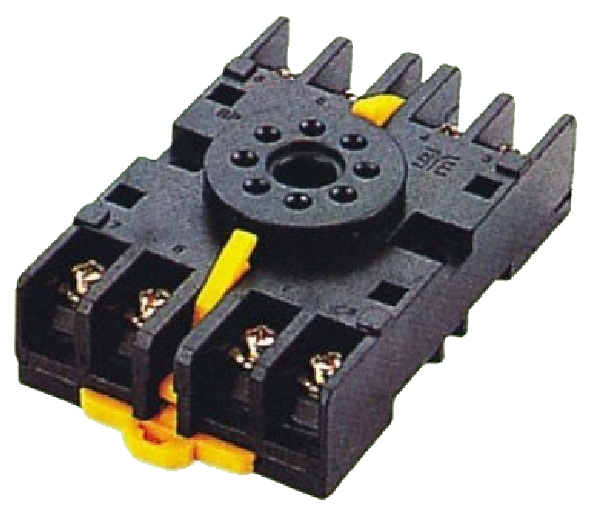

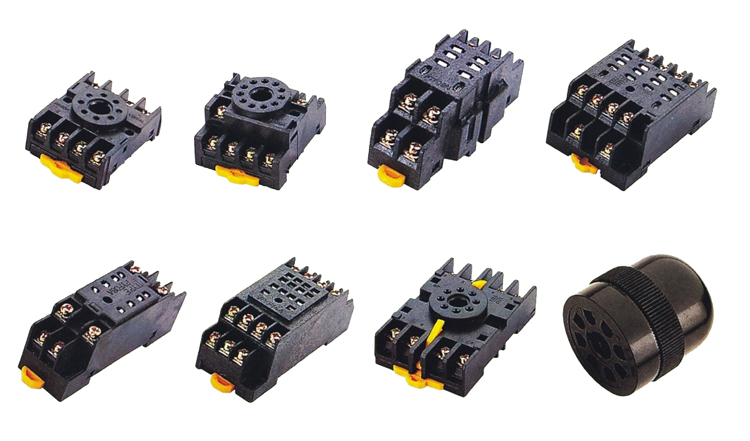

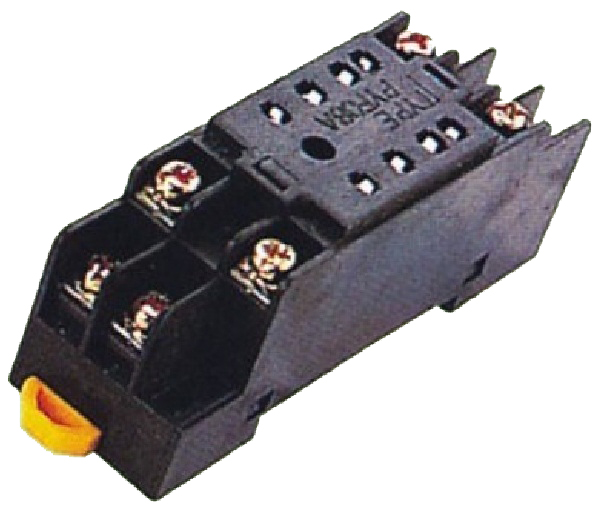

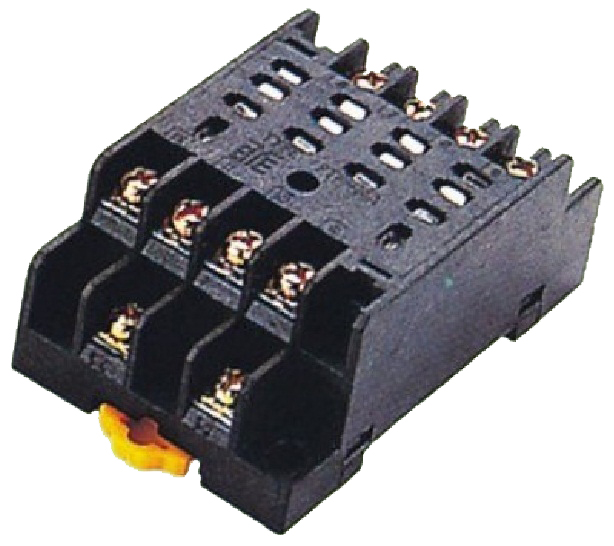

PF-083A Series Relay Socket PF-113A Series Relay Socket PTF-08A Series Relay Socket PTF-14A Series Relay Socket PYF-08A Series Relay Socket PYF-14A Series Relay Socket TR-08A Series Relay Socket US08 Series Relay Socket	PF-083A            PF-113A               PTF-08A           PTF-14A            PYF-08A              PYF-14A      TR-08A                    US08
Products Features
→Dielectric strength:2000V/AC 1Min →Insulation resistance: DC 500V≥500ΜΩ →Load rating: Voltage rating 250V AC Current rating 10 Amp →Heat deflection:100℃ / 212℉ →Flammability rating:UL-94V2 →Material    Body: Industrial plastic PC+GF (FRP)    Conductor: (copper) Conductor C5191    Screw & Nut: Screw 3.5x7x6.6 , Nut 3.5mx6 CHQ302    Hardness: HV 200~220
Diagram

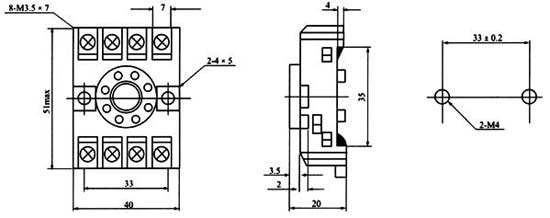

PF-083A

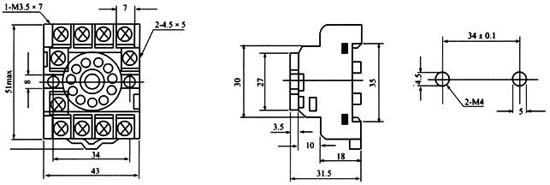

PF-113A

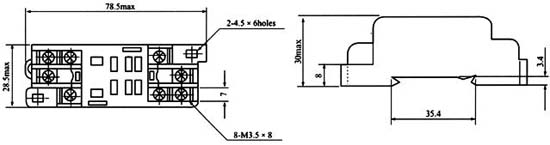

PTF-08A

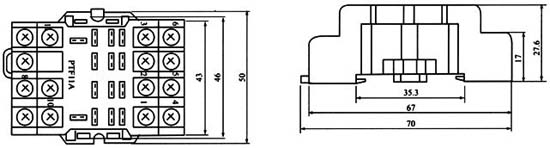

PTF-14A

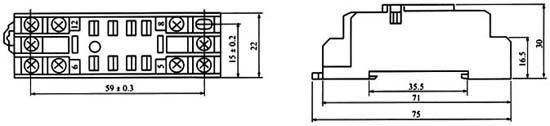

PYF-08A

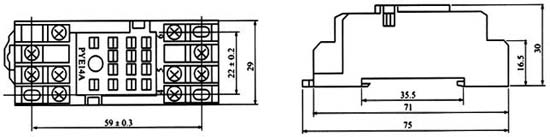

PYF-14A

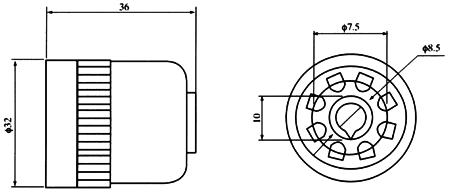

US08
