Maxthermo - Products

|

|

|

|

|

|

Sensors Transmitter\Thermo-Couple Sensor

Sheath Type T.C.

Model：ST Series

Product details：

Adobe Reader Download.

*Products Information*
ST-30 Series Sheath Thermocouple ST-60 Series Sheath Thermocouple ST-70 Series Sheath Thermocouple Download PDF Catalogue
*Products Features*
→K / J Type →With wire type : ST-30 With thread connection : ST-60 Without thread connection : ST-70
Temperature Wire	Sheath Outer Dia.(→) Sheath Material(↓)	1.0Ф	1.6Ф	3.2Ф	4.8Ф	6.4Ф	8.0Ф
C-A	Inconel 600	500°C	700°C	900°C	1000°C	1050°C	1100°C
C-A	SUS-316	450°C	600°C	700°C	800°C	850°C	900°C
I-C	SUS-316	250°C	350°C	450°C	500°C	Max. Working Temperature

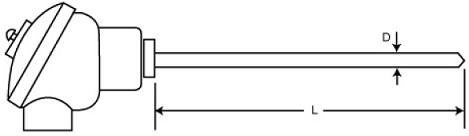

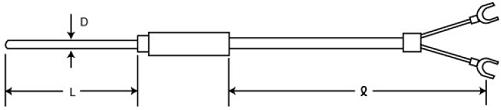

Dimensions (unit : mm)

Product Remarks：
