Products Information
MT-206 Series Resistance Temperature Detector
Products Features
→PT100Ω Type →With round T/C head and tread connection 1/2"~3/4" →3.2, 4, 5, 6, 8, 9.5, 12.7Φ    under 300°C

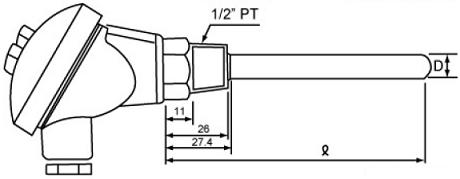

Dimensions (unit : mm)



Products Information
MT-207 Series Resistance Temperature Detector
Products Features
→PT100Ω Type →With round T/C head but without thread connection →3.2, 4, 5, 6, 8, 9.5, 12.7Φ    under 300°C

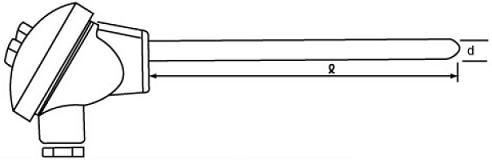

Dimensions (unit : mm)



Products Information
MT-201 Series Resistance Temperature Detector
Products Features
→PT100Ω Type →Resistance temperature detector →Under 300°C

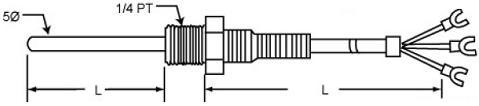

Dimensions (unit : mm)



Products Information
MT-201-1 Series Resistance Temperature Detector
Products Features
→PT100Ω Type →Resistance temperature detector →Under 300°C

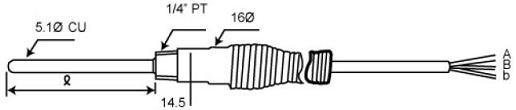

Dimensions (unit : mm)



Products Information
MT-202 Series Resistance Temperature Detector
Products Features
→PT100Ω Type →Resistance temperature detector →Under 300°C

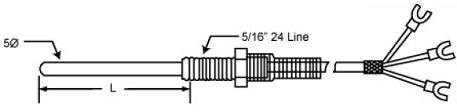

Dimensions (unit : mm)
