Products Information
|
|

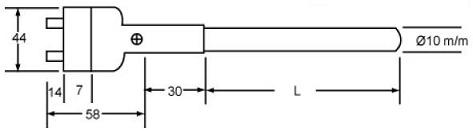

MT-301-1 Series General Thermocouple
|
|
| Products
Features |
|
→With small T type head but without thread connection
→K / J Type
9.5Φ SUS 304, under 600°C
12.7Φ SUS 304, under 700°C
15.9Φ SUS 304, under 800°C
17.3Φ SUS 304, under 900°C
21.7Φ SUS 304, under 1,000°C
→R / S Type
6, 8, 10, 12, 13, 15, 17Φ
ceramic tube, up to 1,600°C
|
|
Products Information
|
|

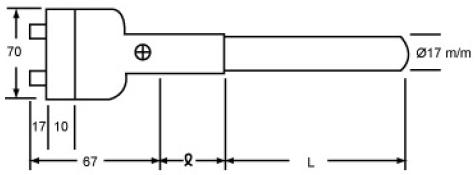

MT-301-2 Series General Thermocouple
|
|
| Products
Features |
|
→With big T type head but without thread connection
→K / J Type
9.5Φ SUS 304, under 600°C
12.7Φ SUS 304, under 700°C
15.9Φ SUS 304, under 800°C
17.3Φ SUS 304, under 900°C
21.7Φ SUS 304, under 1,000°C
→R / S Type
6, 8, 10, 12, 13, 15, 17Φ
ceramic tube, up to 1,600°C
|
|
| |
|
|
|
