Maxthermo - Products

|

|

|

|

|

|

Sensors Transmitter\Photo Sensor

Photo Sensor

Model：Amplifier Separated Series

Product details：

Adobe Reader Download.

*Products Information*
UQ-10R-S Series Amplifier Separated Photo Sensor UQ-15R-S Series Amplifier Separated Photo Sensor
*Products Features*
→Photoelectric switch and division of system : Sensing Probe →Detection Voltage : Reflex type →Supply Voltage : To be used in conjunction with the amplifier (PM-02N / PM-02DN) →Detecting Distance : 10/15cm (8x8cm white paper) →Object : Opaque →Differential Travel : max. 20% of scanning distance →Switching Frequency : 80Hz →Light Source : Infrared LED →Connecting Method : Pre-leaded model →Cover-material : ABS/Black →Protection degree : IEC IP65

*Products Information*
UQ-100T-S Series Amplifier Separated Photo Sensor UQ-200T-S Series Amplifier Separated Photo Sensor
*Products Features*
→Photoelectric switch and division of system : Sensing Probe →Detection Voltage : Through-beam type →Supply Voltage : To be used in conjunction with the amplifier →Detecting Distance : 100/200cm →Object : Opaque →Differential Travel : max. 20% of scanning distance →Switching Frequency : 80Hz →Light Source : Infrared LED →Connecting Method : Pre-leaded model →Cover-material : ABS/Black →Protection degree : IEC IP65

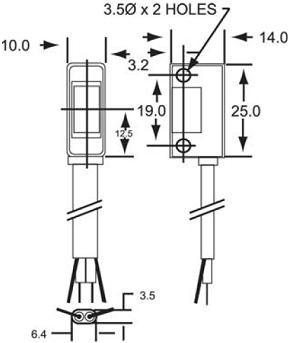

Dimensions (unit : mm)

Product Remarks：
