Sensors Transmitter\Photo Sensor

Separated Amplifier

Model:PM-02 Series

Product details:
 Adobe Reader Download.

Products Information


PM-02N Series Separated Amplifier
PM-02DN Series Separated Amplifier



PM-02N       PM-02DN

Products Features
→Photoelectric switch and division of system : Amplifier unit
→Detection voltage : To be used in conjunction with the sensor
→Supply voltage : AC110V/220V 50/60Hz
→Current consumption : 4VA max.
→Output type : 200VAC 3A SPDT relay contact
Indicator : Light indicator (red)
→Cover-material : ABS/Grey
→Protection degree : IP-65 IEC

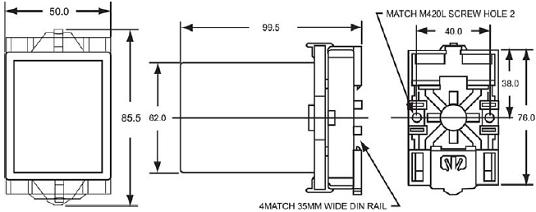

Dimensions (unit : mm)
Product Remarks:
