Power Controller

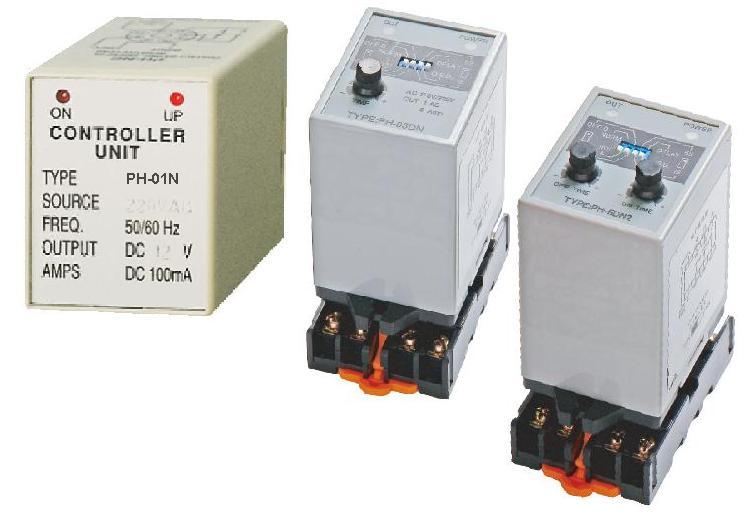

PH-01N / PH-05DN / PH-05DN2

Products Features
→PH-05DN is equipped with multi-function action as ON-DELAY, OFF-DELAY,
   ONE-SHOT DELAY, DELAY TIME.
→110VAC, 220VAC two power source can be selected.
Specifications

Model

PH-01N PH-05DN PH-05DN2
Item
Operating Voltage 110, 220, 240, 380, 415, 440vac 50/60Hz 110~220VAC±10% 50/60Hz
Power Consumption 2VA ≤4.5VA
Ext Sensor Rating - DC18V, 35mA
Input Signal PNP / NPN input type NPN / Current input type
Relay Contact Rating 1C 5A AC 250V, 6A
Delay Time --- 0.1~1sec & 0.3~5sec
can be selected
Timing ON Delay / OFF Delay you can use these together.
Response Time --- Relay contact : 20ms
Ambient Temperature -10°C~+55°C -25°C~+55°C
Ambient Humidity 45~85% RH
Weight Approx : 130g Approx : 210g Approx : 220g
Indicator ON / UP POWER / OUT
Diagram & Timing Chart

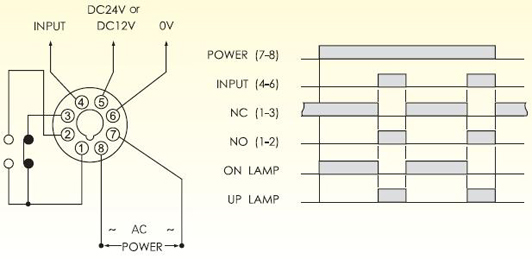

PH-01N :

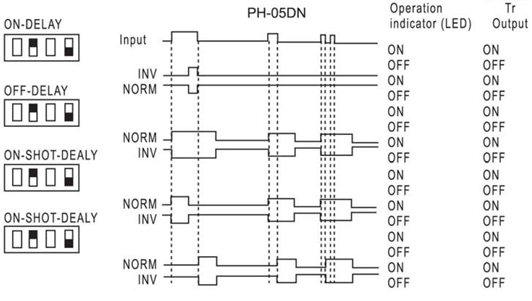

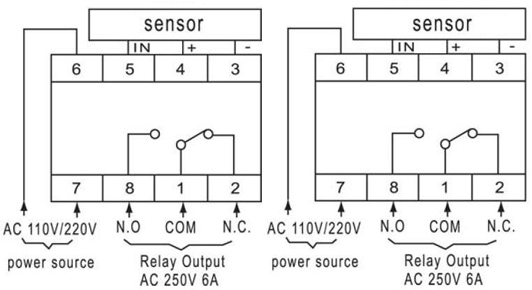

PH-05DN / PH-05DN2 :

Dimension

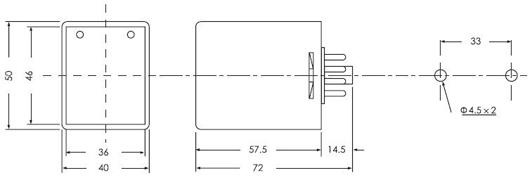

PH-01N :
Product Remarks:
