各类感测组件\热电偶传感器 |
|
| 圆头型热电偶 | | 产品型号:MT系列 | |
| |
|
| | Adobe Reader浏览器下载。
产品信息
|
MT-106系列圆头型热电偶
|
![](../../upload/Image/Sensors_Transmitter/mt106.JPG)
|
产品特色 |
→K / J Type
→With round T/C head and thread connection 1/2"~3/4"
→9.5Φ~under 600°C
12.7Φ~under 700°C
15.9Φ~under 800°C
17.3Φ~under 900°C
21.7Φ~under 1,000°C
|

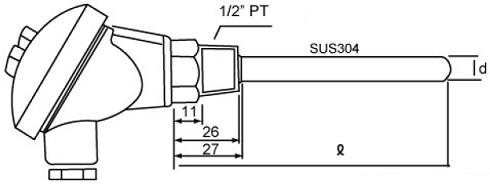

尺寸图 (单位 : mm) |
![](../../upload/Image/Sensors_Transmitter/mt106_z.JPG)
|
产品信息
|
MT-106-1系列圆头型热电偶
|
|
产品特色 |
→K / J Type
→With round T/C head and thread connection 1/2"~3/4"
→9.5Φ~under 600°C
12.7Φ~under 700°C
15.9Φ~under 800°C
17.3Φ~under 900°C
21.7Φ~under 1,000°C
|

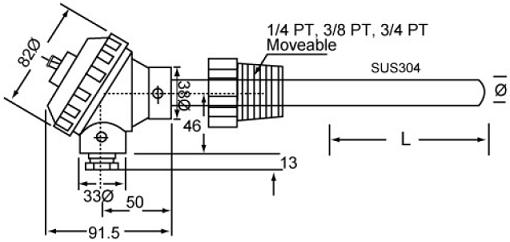

尺寸图 (单位 : mm) |
![](../../upload/Image/Sensors_Transmitter/mt106_1_z.JPG)
|
产品信息
|
MT-107系列圆头型热电偶
|
![](../../upload/Image/Sensors_Transmitter/mt107.JPG)
|
产品特色 |
→K / J Type
→With round T/C head but without thread connection
→9.5Φ~under 600°C
12.7Φ~under 700°C
15.9Φ~under 800°C
17.3Φ~under 900°C
21.7Φ~under 1,000°C
|

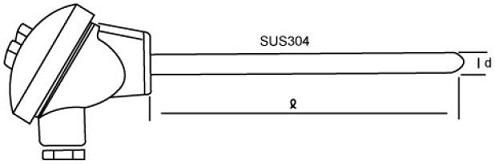

尺寸图 (单位 : mm) |
![](../../upload/Image/Sensors_Transmitter/mt107_z.JPG)
|
产品信息
|
MT-108系列圆头型热电偶
|
|
产品特色 |
→K / J Type
→With round anti-explosion T/C head and flange
→9.5Φ~under 600°C
12.7Φ~under 700°C
15.9Φ~under 800°C
17.3Φ~under 900°C
21.7Φ~under 1,000°C
|

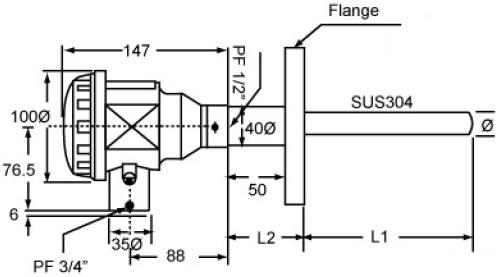

尺寸图 (单位 : mm) |
![](../../upload/Image/Sensors_Transmitter/mt108_z.JPG)
|
产品信息
|
MT-109系列圆头型热电偶
|
![](../../upload/Image/Sensors_Transmitter/mt109.JPG)
|
产品特色 |
→R / S Type
→With round T/C head but without thread connection
→6, 8, 10, 12, 13, 15, 17Φ
ceramic tube, up to 1,600°C
|

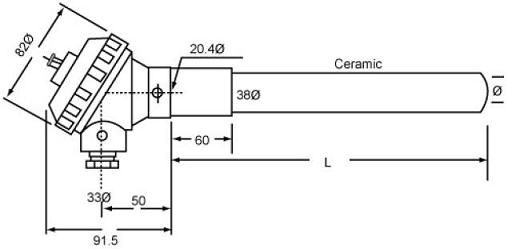

尺寸图 (单位 : mm) |
![](../../upload/Image/Sensors_Transmitter/mt109_z.JPG)
|
|
| |
|
|
|
|
|
